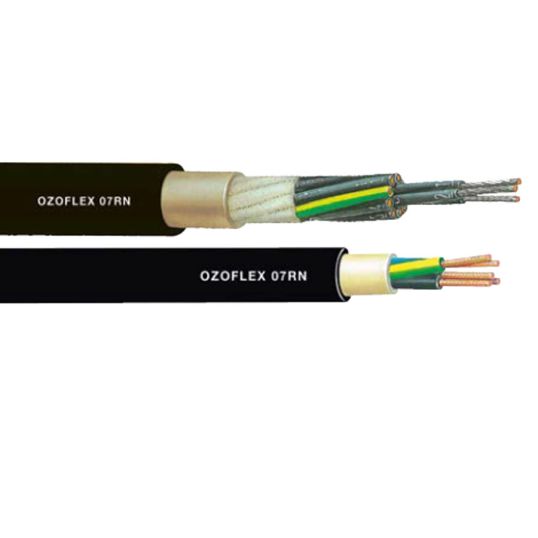

Siemens Ozoflex Flexible Cable Heavy Duty 5 Core & Earth 10mm Copper 0.6/1kV EPR Compound/CSP Black

Description

Flexible Cable Heavy Duty, 10 mm, Stranded Copper, 0.6-1 kV, 5 Core + Earth, 80/0.4 mm Strands, 23.7 mm Overall Diameter, Static 94.8 mm Flexible 118.5 mm Bend Radius, 15 N/mm Tensile Strength, Brown/Black/Blue/Grey/Green/Yellow Core, EPR Insulation, CSP Elastomer Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3191 AS/NZS 5000-1 AS/NZS 3008.1.1:2009

Key Specifications

SKU	SIE5DH2941-6AS
Brand	Siemens
Range Name	Ozoflex
Product Type	Flexible Cable Heavy Duty

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DH2941-6
Bend Radius	Static 94.8 mm - Flexible 118.5 mm
Conductor Size	10 mm
Conductor Type	Stranded Copper
Core Colours	Brown/Black/Blue/Grey/Green/Yellow
Insulation Material	EPR
Number of Cores	5 Core + Earth
Overall Diameter	23.7 mm
Sheath Colour	Black
Sheath Material	CSP Elastomer
Standards	AS/NZS 1125 AS/NZS 3191 AS/NZS 5000-1 AS/NZS 3008.1.1:2009
Stranding	80/0.4 mm
Temperature	90 deg C
Tensile Strength	15 Nm
Voltage	0.6-1 kV
