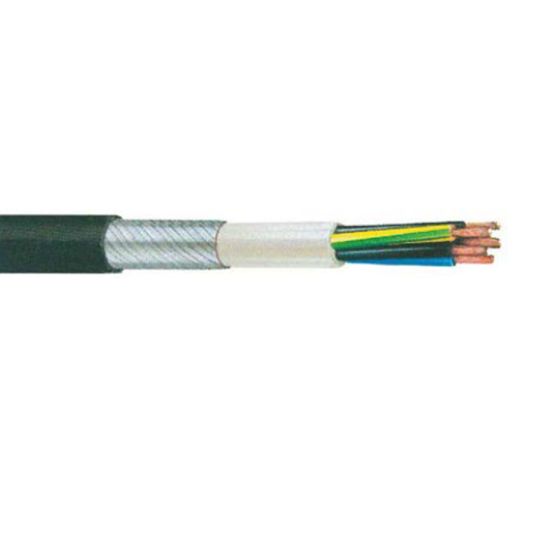

Siemens Protomont Screened Flexible Cable Heavy Duty/Extra Heavy Duty 5 Core & Earth 2.5mm Copper 0.6/1kV R-EP-90/CPE

Description

Flexible Cable Heavy Duty, 2.5 mm, Stranded Tinned Copper, 0.6-1 kV, 5 Core + Earth, 50/0.25 mm Strands, Overall Screened Screen, 15.8 mm Overall Diameter, 2.5 mm Earth Conductor, Static 63.2 mm Flexible 79 mm Bend Radius, 15 N/mm Tensile Strength, Tinned Copper Screen, Red/White/Blue/Black/Green/Yellow Core, EPR (R-EP-90) Insulation, CPE Sheath, 90 deg C, AS/NZS 5000-1 AS/NZS 3191

Key Specifications

SKU	SIE5DL2710F
Brand	Siemens
Range Name	Protomont
Product Type	Flexible Cable Heavy Duty

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DL2710-F
Bend Radius	Static 63.2 mm - Flexible 79 mm
Conductor Size	2.5 mm
Conductor Type	Stranded Tinned Copper
Core Colours	Black/Blue/Red/White/Green/Yellow
Earth Conductor Size	2.5 mm
Insulation Material	EPR (R-EP-90)
Number of Cores	5 Core + Earth
Overall Diameter	15.8 mm
Screen Format	Overall Screened
Screen Material	Tinned Copper
Sheath Material	CPE
Standards	AS/NZS 5000-1 AS/NZS 3191
Stranding	50/0.25 mm
Temperature	90 deg C
Tensile Strength	15 Nm
Voltage	0.6-1 kV
