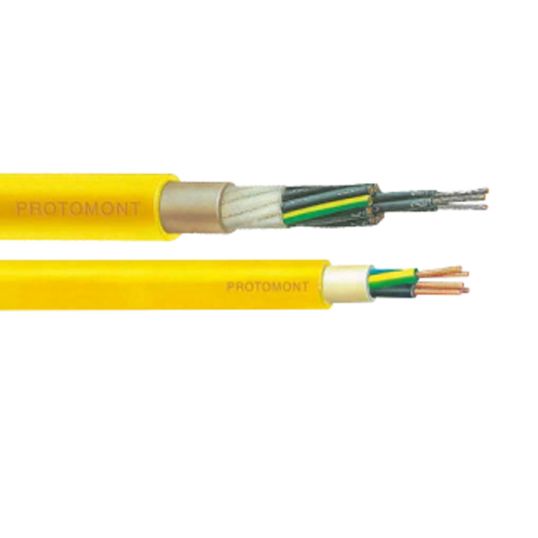

Siemens 1.5mm 3 Core Yellow Extra Heavy Duty Mining Cable Overall Screened EPR/PCP

Description

Mining Cable, Extra Heavy Duty, 1.5 mm, Stranded Tinned Copper, 0.6-1 kV, 3 Core, 84/0.3 mm Strands, Overall Screened Screen, 20.5 mm Overall Diameter, 82 mm; Static/102.5 mm Flexible Bend Radius, 15 N/mm Tensile Strength, Blue/Brown/Black Core, EPR (R-EP-90) Insulation, Heavy Duty PCP Sheath, Yellow Sheath, Static: -40 to 80 deg C/Flexible: -25 to 80 deg C, AS/NZS 3008.1.1:2017, with 3 Control Cores, 3 x 6 + 3 x 6/3E + 3 x 1.5 mm

Key Specifications

SKU	SIE5DM4730
Brand	Siemens
Range Name	Protomont
Product Type	Mining Cable Extra Heavy Duty

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DM4730
Bend Radius	Static 82 mm/Flexible 102.5 mm
Core Colours	Blue/Brown/Black
Conductor Type	Stranded Tinned Copper
Conductor Size	1.5 mm
Insulation Material	EPR (R-EP-90)
Number of Cores	3 Core
Overall Diameter	20.5 mm
Please Note	with 3 Control Cores 3x6 + 3x 6/3E + 3x1.5 mm
Screen Format	Overall Screened
Sheath Material	Heavy Duty PCP
Sheath Colour	Yellow
Stranding	84/0.3 mm
Temperature	Static -40 to 80 deg C Flexible -25 to 80 deg C
Tensile Strength	15 Nm
Standards	AS/NZS 3008.1.1:2017
Voltage	0.6-1 kV
