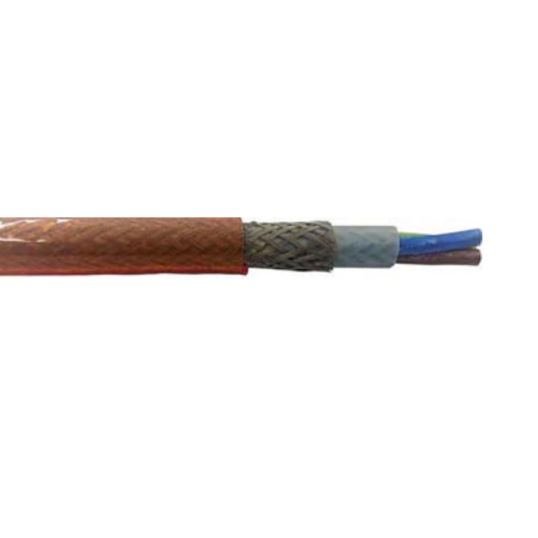

Siemens Protoflex EMC Flexible Cable VSD/EMC Screened UV Stabilised 3 Core 2.5 mm 0.6/1 kV PVC Clear Orange
Loading...
Description
VSD Cable, 2.5 mm, 0.6-1 kV, 3 Core, 50/0.25 mm Strands, 12 mm Overall Diameter, Static 62.5 mm Flexible 120 mm Bend Radius, Tinned Copper Braid Screen, PVC Sheath, Clear/Orange Sheath, AS/NZS 3008.1.1:2017
Key Specifications
| SKU |
SIE5EMV3025
|
|---|---|
| Brand |
Siemens
|
| Product Type |
VSD Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 5EMV3025 |
| Bend Radius | Static 62.5 mm/Flexible 120 mm |
| Conductor Size | 2.5 mm |
| Number of Cores | 3 Core |
| Overall Diameter | 12 mm |
| Screen Material | Tinned Copper Braid |
| Sheath Colour | Clear/Orange |
| Sheath Material | PVC |
| Standards | AS/NZS 3008.1.1:2017 |
| Stranding | 50/0.25 mm |
| Voltage | 0.6-1 kV |
