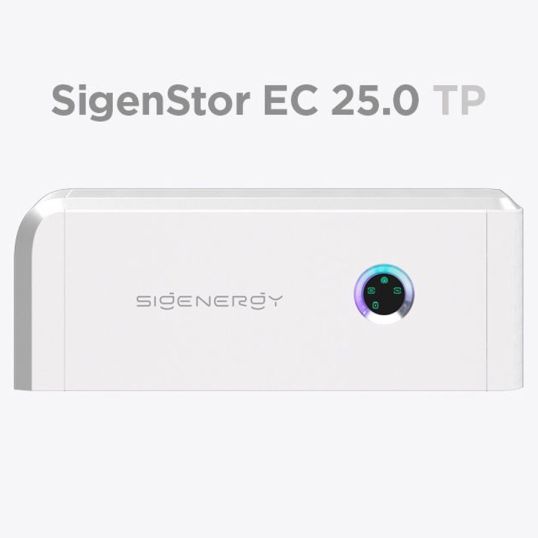

Sigen Energy Controller 25.0 kW Three Phase for AU

$Sigenergy\Sigenergy_11010044.JPG$

Description

SKU	SIG11010044
Brand	Sigenergy

Looking for something specific? Search with keywords to help filter your required specifications.

Features	EMS inside for precise control On and off-grid compatibility Up to 4 MPP. Trackers DC/AC ratio up to 2 Multi-source black start IP66 system protection rating
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	11010044
IP Rating	IP66
Power Factor	0.8 Leading-0.8 Lagging
Height	300 mm
Width	700 mm
Depth	260 mm
AC Output Power	25000 Watt
DC Max. Input Current	16 Amp
Cooling Method	Smart Air Cooling
Efficiency	98.30%
Phase	3 Phase
AC Max. Apparent Power	27500 VA
AC Nominal Voltage	380 / 400 Volt
AC Operating Frequency	50/60 Hz
AC Output Current	41.8 Amp
Battery	SigenStor BAT 5.0 / 8.0 Voltage: 600-900 Volt
DC Input Power	40000 Watt
DC Input Voltage	1100 Volt
DC MPPT Voltage Range	160-1000 Volt
DC Nominal Voltage	600 Volt
DC Start-up Voltage	180 Volt
European Weighted Efficiency	98%
Total Harmonic Distortion	<2%
Number of MPPTs	4
Operating Temperature	-30 to 60 deg C
Communication Port	WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)
Max. Operating Altitude	4000 mtr
Relative Humidity	0-95%
