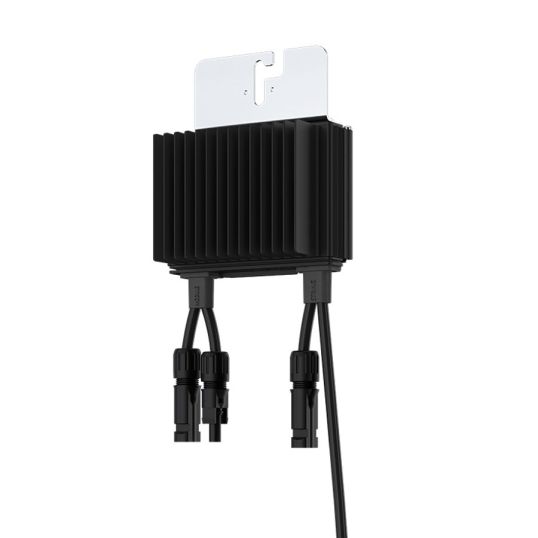

SolarEdge S Series Power Optimizer Input Upto 1200W 2 In Series

$Solar_Edge\SolarEdge_S12001GM4MBV.jpg$

Description

Power Optimizer, 1200 Watt DC Input, 125 Volt DC Input, 12.5-105 Volt DC MPPT Voltage Range, 20 Amp AC Output, 0.995 Efficiency, 0.988 European Weighted Efficiency, MC4 Connection, IP68, -40 to 85 deg C

Key Specifications

SKU	SLRS1200-1GM4MBV
Brand	SolarEdge
Product Type	Power Optimizers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High Efficiency 99.5% with panel level MPPT Supports High Power and Bifacial PV Panels and high string current for more power per string Designed to automatically reduce high DC voltage to touch-safe levels upon grid/inverter shutdown with SafeDC Includes SolarEdge Sense Connect Supports connection of two PV panels in series with easy cable management and fast installation times Panel Level System Monitoring enabling pinpointed fault detection and remote troubleshooting
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S1200-1GM4MBV
Connection Type	MC4
AC Output Current	20 Amp
DC Input Power	1200 Watt
DC Input Voltage	125 Volt
DC MPPT Voltage Range	12.5-105 Volt
Depth	165 mm
Efficiency	0.995
European Weighted Efficiency	0.988
Height	59 mm
IP Rating	IP68
Operating Temperature	-40 to 85 deg C
Relative Humidity	0-100%
Width	129 mm
