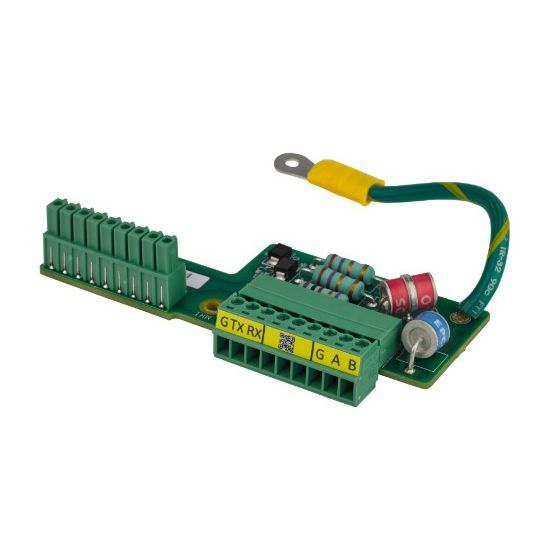

Solar Edge SPD Plug-In For RS485 For Three Phase Inverters

$Solar_Edge\SolarEdge_SLRSE-RS485SPD2-K1.jpg$

Description

SPD Plug-In, For RS485 For 3 Phase Inverters, 15 Volt, 300 mA, >3 MHz, Screw Terminal/0.2-1.5 AWG Connector, IP20, -40 to 85 deg C, 91 mm x 37 mm x 15 mm

Key Specifications

SKU	SLRSE-RS485-SPD2-K1
Brand	SolarEdge

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Protects the RS485 transceiver from electrical surges such as lightning Easy connection to the RS485 terminal block in the inverter Compatible with all SolarEdge 3 phase inverter Can be added to existing installation without having to redo the RS485 wiring
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SE-RS485-SPD2-K1
Current	300 mA
Connector System	Screw Terminal/0.2-1.5 AWG
For Use With	RS485 For 3 Phase Inverters
Dimensions	91 mm x 37 mm x 15 mm
Frequency	>3 MHz
IP Rating	IP20
Product Type	simple
Voltage	15 Volt
Temperature	-40 to 85 deg C
