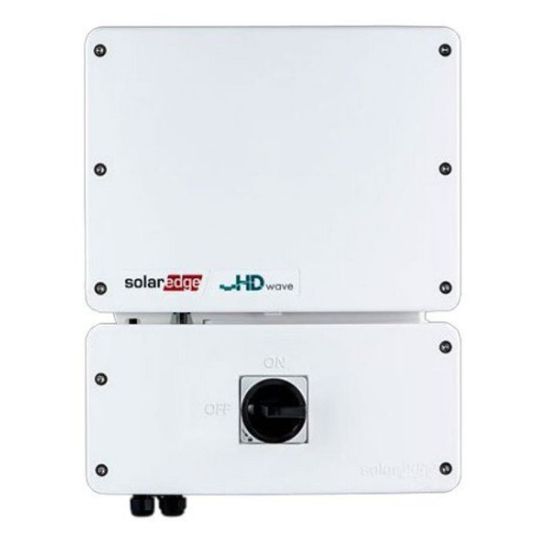

SolarEdge Energy Hub Inverter 10 kW 1 PH 220/230V 45.5A IP65

$Solar_Edge\SolarEdge_SE10000H-AUSNBBX14.jpg$

Description

Solar Inverter Energy Hub, 1 Phase Phase, 22000 Watt DC Input, 480 Volt DC Input, 380 Volt DC Nominal, 25.5 Amp DC Max. Input, 10 kW AC Output, 10000 VA AC Max. Apparent, 184-264.5 Volt AC, 220-230 Volt AC, 50/60 Hz, 45.5 Amp AC Output, 1 Power Factor, <3% Total Harmonic Distortion, 0.992 Efficiency, 0.99 European Weighted Efficiency, RS485 Modbus Devices/Wi-Fi Ethernet, Natural Convection Cooling, <50 dBA, IP65, -40 to 60 deg C

Key Specifications

SKU	SLRSE10000HAUSNBBX14
Brand	SolarEdge
Product Type	Solar Inverter Energy Hub

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Single string design for inverter up to 5 kW AC 99% weighted efficiency with up to 300% DC oversizing Modular design - future ready with optional upgrades - full home backup power, DC coupled storage, backup generator connection, EV charger with Solaredge home EV charger Built-in consumption monitoring Multi-inverter, scalable storage solution Advanced safety features includes SafeDC rapid shutdown and integrated arc fault protection Built-in panel level monitoring Rapid Inverter Commissioning via smartphone using SetApp Small, lightweight and easy to install IP65 rated for indoor and outdoor installations
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SE10000H-AUSNBBX14
AC Max. Apparent Power	10000 VA
AC Nominal Voltage	220-230 Volt AC
AC Operating Frequency	50/60 Hz
AC Output Power	10 kW
Communication Port	RS485 Modbus Devices/Wi-Fi Ethernet
AC Output Current	45.5 Amp
AC Operating Voltage	184-264.5 Volt AC
Cooling Method	Natural Convection
DC Input Power	22000 Watt
DC Input Voltage	480 Volt
DC Nominal Voltage	380 Volt
DC Max. Input Current	25.5 Amp
Depth	185 mm
Efficiency	0.992
European Weighted Efficiency	0.99
Height	540 mm
IP Rating	IP65
Noise Level	<50 dBA
Operating Temperature	-40 to 60 deg C
Phase	1 Phase
Power Factor	1
Total Harmonic Distortion	<3%
Width	370 mm
