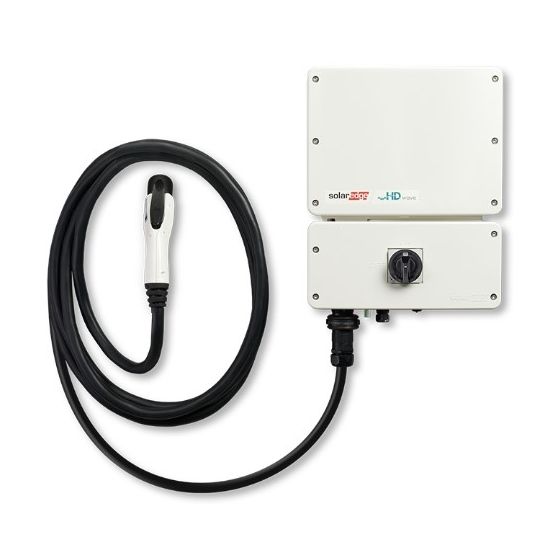

Solar Edge Solar Charging Inverter EV with HD Wave Technology Single Phase 5kW

$Solar_Edge\SolarEdge_SE5000H-AU000BNV4.jpg$

Description

Solar Charging Inverter, 1 Phase, 7750 Watt Input, 480 Volt DC Input, 380 Volt DC Nominal, 13.5 Amp Max. Input, 5 kW Output, 5000 VA Max. Apparent, 184-264.5 Volt AC Operating, 220/230 Volt AC Nominal, 50/60 Hz +/- 5, 23 Amp Output, 1, Adjustable 0.8 to 0.8 Power Factor, <3% Harmonic Distortion, 99.2% Efficiency, Transformerless, Ungrounded, RS485, Ethernet, ZigBee/Cellular/Wi-Fi(Optional), Natural Convection Cooling, < 25 dBA, IP65, -40 to 60 deg C, 370 mm Width x 450 mm Height x 174 mm Depth, 11.4 kg

Key Specifications

SKU	SLRSE5000H-AU000BNV4
Brand	SolarEdge
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Combines solar and grid power for faster EV charging Maximises self consumption and optimises use of renewable energy An EV ready solution futureproofed for new EV purchase or replacement Small, lightweight and easy to install indoor or outdoor Record breaking 99% efficiency, powered HD Wave technology Designed to work with SolarEdge power optimiser Built-in module level monitoring Flexible selection of charger cable types and length
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SE5000H-AU000BNV4
AC Max. Apparent Power	5000 VA
AC Nominal Voltage	220-230 Volt
AC Operating Frequency	50/60 Hz +/- 5 Hz
AC Output Power	5 kW
Communication Port	RS485/Ethernet/ZigBee/Cellular/Wi-Fi(Optional)
AC Output Current	23 Amp
AC Operating Voltage	184-264.5 Volt
Cooling Method	Convection
DC Input Power	7750 Watt
DC Input Voltage	480 Volt
DC Nominal Voltage	380 Volt
DC Max. Input Current	13.5 Amp
Depth	174 mm
Efficiency	99.20%
European Weighted Efficiency	99%
Height	450 mm
Item Weight	11.4 kg
IP Rating	IP65
Noise Level	<25 dBA
Operating Temperature	-40 to 60 deg C
Phase	1 Phase
Power Factor	1/Adjustable 0.8 to 0.8
Topology	Transformerless/Ungrounded
Width	370 mm
