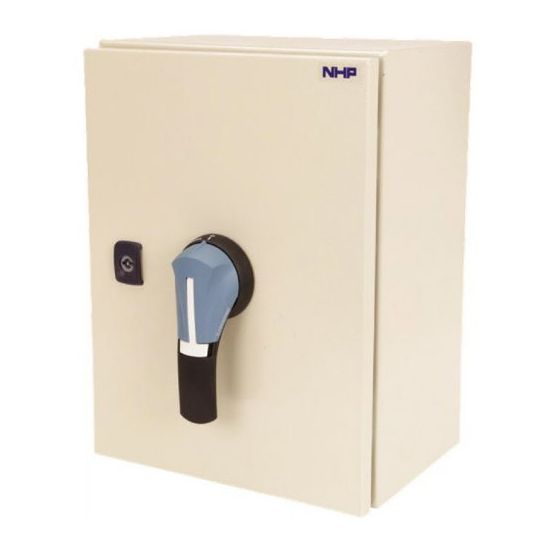

Socomec Load-Break Switch Enclosed 3P 800A AC21 450 kW AC23 Surface Mount IP65

$Socomec\Socomec_ELB_S.jpg$

Description

Load-Break Switch Enclosed, 400 Volt AC, AC21 Rating: 800 Amp, AC23 Rating: 800 Amp, 450 kW, 3 Pole, IP65, Surface Mount, Sheet Metal, RAL7035 Light Grey, 200 mm Height, 200 mm Width, 155 mm Depth, Steel Enclosure

Key Specifications

SKU	SOCELB-S8003P
Brand	Socomec
Range Name	ELB-S
Product Type	Load-Break Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	IP65 rating combined with selection of polycarbonate, mild steel and stainless steel, has any environment, indoor or outdoor, covered Spacious design allowing for quick and easy connection as well as the option to fit additional accessories within the enclosed assembly Knockouts provided with ELB-PM series (up to 63A) and gland plates for the ELB-S series as standard making it easier to connect to the internal isolator and reducing installation time The same high quality Socomec load break switches including the SLBM, SLB and 32BR switches used across the enclosed range Enclosed assemblies feature the ergonomic IP65 S-Type handles from Socomec which includes interlocking (in the ON position), pad locking, UV and chemical agent resistive material and the choice of standard blue or red/yellow colour
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ELBS8003P
AC23 Rating	800 Amp 450 kW
Current	800 Amp
Colour	RAL7035 Grey
Depth	155 mm
Height	200 mm
IP Rating	IP65
Number Of Poles	3 Pole
Please Note	Steel Enclosure
Width	200 mm
Voltage	400 Volt AC
