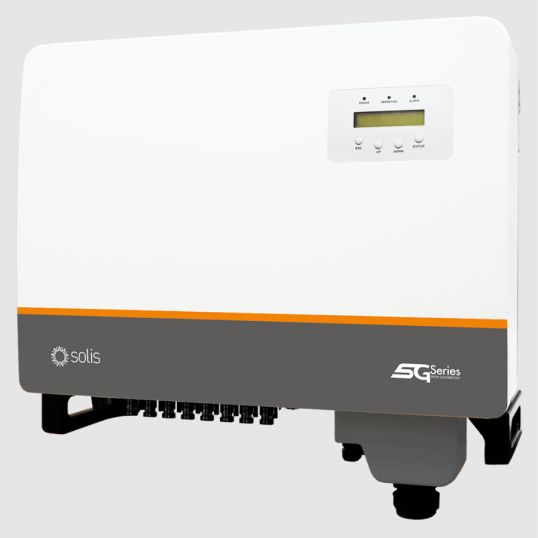

Solis PV Grid Inverter Three Phase 30kW 4 MPPT Built-in DC

Description

PV Grid Inverter, 3 Phase, 39.9 kW DC Input, 1100 Volt DC Input, 200-1000 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 32 Amp DC Max. Input, 4 MPPTs, 30 kW AC Output, 30 kVA AC Max. Apparent, 50 Hz, 50.2 Amp AC Output, >0.99 (0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 98.6% Efficiency, 98.2% European Weighted Efficiency, Transformerless, 4000 mtr Max. Altitude, Integrated DC Switch, RS485, Optional: Wi-Fi, GPRS, LCD Display, Intelligent Redundant Fan-Cooling Cooling, DC: MC4, AC: OT Terminal Connection, IP65,-25 to 60 deg C, 0-100% Relative Humidity, 629mm Height, 647mm Width, 252mm Depth, 37 kg, AS/NZS 4777.2:2020, IEC 62116, IEC 61727, IEC 60068, IEC 61683

Key Specifications

SKU	SOLS5-GC30K-AU
Brand	Solis
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Support night time PID recovery function, increase overall system yield (optional) Wide voltage range and low startup voltage Support export power control Intelligent string monitoring, smart I-V curve scan Scan to register on SolisCloud, support remote upgrade and control AFCI protection, proactively reduces fire risk Globally recognised branded componentry for longer life Intelligent redundant fan-cooling Support GPRS/WiFi communication with less wiring/construction cost >130% DC/AC ratio
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S5-GC30K-AU
AC Max. Apparent Power	30 kVA
AC Operating Frequency	50 Hz
AC Output Power	30 kW
Connection Type	DC: MC4/AC: OT Terminal
Communication Port	RS485/Optional: Wi-Fi/GPRS
AC Output Current	50.2 Amp
Cooling Method	Intelligent Redundant Fan-Cooling
DC Input Power	39.9 kW
DC Input Voltage	1100 Volt
DC MPPT Voltage Range	200-1000 Volt
DC Switch	Integrated
DC Start-up Voltage	180 Volt
DC Max. Input Current	32 Amp
Display Type	LCD
Depth	252 mm
Efficiency	98.60%
European Weighted Efficiency	98.20%
Height	629 mm
IP Rating	IP65
Max. Operating Altitude	4000 mtr
Number of MPPTs	4
Operating Temperature	-25 to 60 deg C
Phase	3 Phase
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Topology	Transformerless
Total Harmonic Distortion	<3%
Width	647 mm
