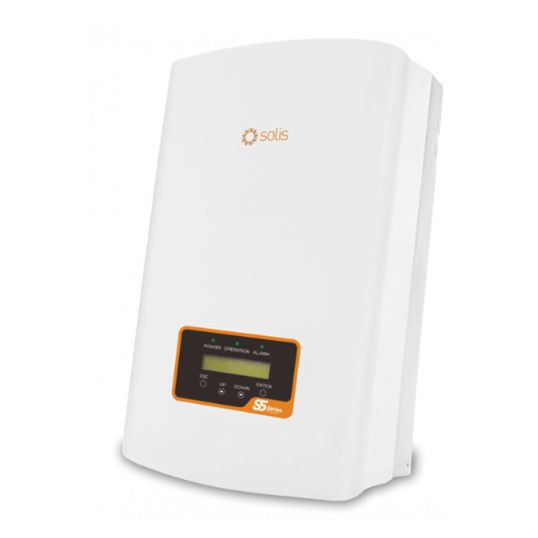

Solis S5 5000W PV Grid Tie Single Phase Inverter Dual MPPTBuit-in DC Include Wi-Fi 14A Max. input current

Description

Solar Inverter, 1 Phase Phase, 6.7 kW DC Input, 600 Volt DC Input, 330 Volt DC Nominal, 90-520 Volt DC MPPT Voltage Range, 120 Volt DC Start-up, 14 Amp DC Max. Input, 2 MPPTs, 5 kW AC Output, 5 kVA AC Max. Apparent, 230 Volt 1/N/PE, 50 Hz, 25 Amp AC Output, >0.99 (0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 0.977 Efficiency, 0.971 European Weighted Efficiency, Transformerless, 2000 mtr Max. Altitude, Optional (PV2 Switch) DC Switch, RS485/Wi-Fi (Optional)/GPRS, LCD Display, Natural Convection Cooling, DC: MC4/AC: Quick Connection Plug Connection, IP65, -25 to 60 deg C

Key Specifications

SKU	SOLS5-GR1P5K
Brand	Solis
Range Name	Inverter
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Maximum efficiency 97.7% 2 MPPT design with precise MPPT algorithm Maximum input current 14 Amp Built-in DC-PV2 switch comply with AS/NZS 5033 requirements DRM integrated, fully comply with AS/NZS 4777.2:2020 Compact and lightweight Support 24h Consumption Monitoring with a smart meter Voltage Active Power & Reactive Power Compact and lightweight Voltage active power and reactive power
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S5-GR1P5K
AC Max. Apparent Power	5 kVA
AC Nominal Voltage	230 Volt 1/N/PE
AC Operating Frequency	50 Hz
AC Output Power	5 kW
Connection Type	DC: MC4/AC: Quick Connection Plug
Communication Port	RS485/Wi-Fi (Optional)/GPRS
AC Output Current	25 Amp
Cooling Method	Natural Convection
DC Input Power	6.7 kW
DC Input Voltage	600 Volt
DC Nominal Voltage	330 Volt
DC MPPT Voltage Range	90-520 Volt
DC Switch	Optional (PV2 Switch)
DC Start-up Voltage	120 Volt
DC Max. Input Current	14 Amp
Display Type	LCD
Depth	160 mm
Efficiency	0.977
European Weighted Efficiency	0.971
Height	543 mm
IP Rating	IP65
Max. Operating Altitude	2000 Mtr
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Topology	Transformerless
Total Harmonic Distortion	<3%
Width	310 mm
