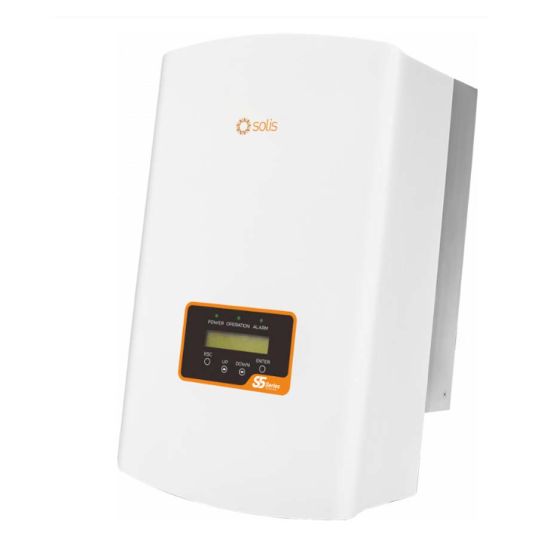

SOLIS 8kW Single phase string inverter 3 MPPT

$Solis\Solis_S5-GR1P-7-10K.jpg$

Description

7-10 kW Single-phase series string inverter bring more power generation to users by adopting three MPPT design. Smaller size , lighter weight, the simpler installation , more convenient transportation. The optional AFCI device can avoid reducing the fire incidence by 99%, and protect your electricity safety to a greater extent. Real-time monitoring and information control can be realized.

Key Specifications

SKU	SOLS5-GR1P8K
Brand	Solis
Range Name	Inverter
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wide voltage range and low startup voltage 3 MPPT design, suitable for multi-facing roof AFCI protection, proactively reduces fire risk 24-hour load consumption monitoring Adaptive weak grid
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S5-GR1P8K
AC Max. Apparent Power	8.8 kVA
AC Nominal Voltage	220 / 230 Volt 1/N/PE
AC Operating Frequency	50/60 Hz
AC Output Power	8 kW
AC Output Current	36.6 Amp
Communication Port	RS485 Optional: Wi-Fi / GPRS
Connection Type	DC: MC4 / AC: OT Terminal
Cooling Method	Natural Cooling with Internal Fan
DC Input Power	12 kW
DC Max. Input Current	14 Amp
DC Input Voltage	600 Volt
DC MPPT Voltage Range	100-500 Volt
DC Nominal Voltage	330 Volt
DC Start-up Voltage	120 Volt
DC Switch	Integrated
Depth	253 mm
Display Type	LCD
Efficiency	98%
Height	579 mm
IP Rating	IP66
European Weighted Efficiency	97.10%
Max. Operating Altitude	4000 mtr
Noise Level	<30 dBA
Number of MPPTs	3
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Topology	Transformerless
Total Harmonic Distortion	<3%
Width	333 mm
