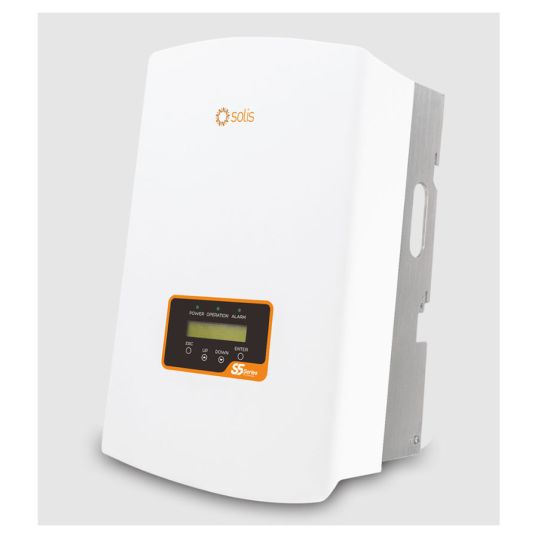

Solis S5 PV Grid Tie Inverter 2 MPPT 20kW 600V Three Phase IP66 Built-in DC

chevron-left
loader
Loading...

Description

chevron-down
Solis S5 20kW PV Grid Tie Inverter 2 MPPT 3 Ph Built-in DC

Key Specifications

chevron-down
SKU
SOLS5-GR3P20K
Brand
Solis
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Max Efficiency 98.7%
  • Wide Voltage Range & Low Startup Voltage
  • Automatic Voltage Stabilization technology in weak grid condition
  • Compact Design with easy maintenance and installation
  • String Current up to 16A
  • 130% DC/AC Ration
  • IP66, AFCI Protection - Proactively reduces fire risk
  • Support Export Power Control, RS485m Wi-Fi, GPRS
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product S5-GR3P20K
AC Max. Apparent Power 20 kVA
AC Nominal Voltage 3/N/PE 230V/400V
AC Operating Frequency 50 Hz
AC Output Power 20 kW
Connection Type DC: MC4/ AC: Quick Connection Plug
Communication Port RS485 Optional: Wi-Fi GPRS
AC Output Current 31.8 Amp
Cooling Method Intelligent Redudant Fan-Cooling
DC Input Power 26.6 kW
DC Input Voltage 1100 Volt
DC Nominal Voltage 600 Volt
DC MPPT Voltage Range 160-1000 Volt
DC Switch Yes (PV2 Switch)
DC Start-up Voltage 180 Volt
DC Max. Input Current 32 Amp/32 Amp
Display Type LCD
Depth 219 mm
Efficiency 98.70%
European Weighted Efficiency 98.10%
Height 563 mm
IP Rating IP66
Max. Operating Altitude 2000 Mtr
Number of MPPTs 2
Operating Temperature -25 to 60 deg C
Phase 3 Phase
Power Factor >0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity 0-100%
Topology Transformerless
Total Harmonic Distortion <2%
Width 310 mm
