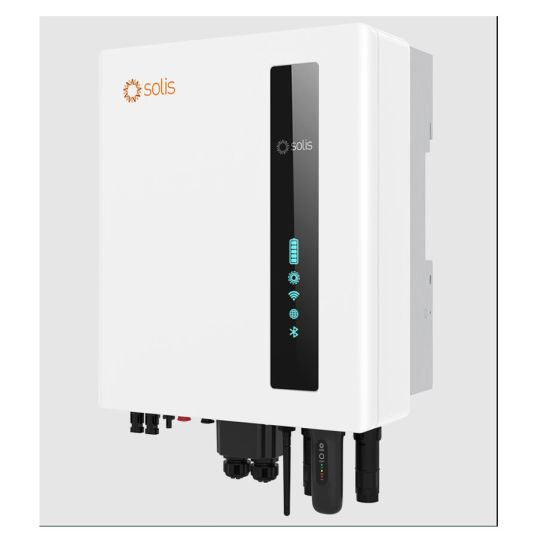

Solis S6 Energy Storage Inverter 2 MPPT 3kW 600V Single Phase IP66

Name: Solis S6 3kW Hybrid Inverter 2 MPPT 1 Phase
SKU: SOLS6-EH1P3K-L
Availability: InStock

Description

Solis S6 3kW Hybrid Inverter 2 MPPT 1 Phase

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Industry Leading 125A/6kW Max Charge/Discharge Rate Integrated 2 MPPTs for multiple array orientations Automatic UPS Switching Support Peak Shaving Mode Supports 1 Phase & 3 Phase Flexible Connection on both Grid & Backup Port Compatible with multiple brands of lithium battery models Increased battery protection and operation features to extend battery life
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S6-EH1P3K-L
AC Max. Apparent Power	3 kVA
AC Nominal Voltage	220 V/ 230 V
AC Operating Frequency	50/60 Hz
AC Output Power	3 kW
Connection Type	DC: MC4/ AC: Quick Connection Plug
Communication Port	RS485 CAN Optional: Wi-Fi GPRS LAN
AC Output Current	15 Amp
Battery	Li-Ion/Lead Acid - Batt Voltage Range: 42-58V
Cooling Method	Natural Convection
DC Input Power	4.8 kW
DC Input Voltage	600 Volt
DC Nominal Voltage	330 Volt
DC MPPT Voltage Range	90-520 Volt
DC Start-up Voltage	90 Volt
DC Max. Input Current	16 Amp
Display Type	LED + APP
Depth	205 mm
Efficiency	97%
European Weighted Efficiency	96.20%
Height	480 mm
IP Rating	IP66
Max. Operating Altitude	4000 Mtr
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Topology	High Frequency Isolation (For Battery)
Total Harmonic Distortion	<2%
Width	405 mm
