Solis S6 Energy Storage Inverter 2 MPPT 10kW 600V Three Phase IP66 Max Charge Power - 10kW Max Charge Current - 50A

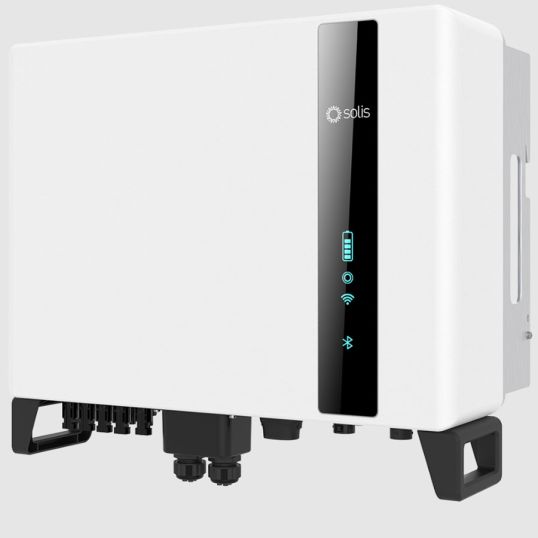

Name: Solis S6 10kW Hybrid Inverter 2 MPPT 3 Phase
SKU: SOLS6-EH3P10K-H
Availability: InStock

Description

Solis S6 10kW Hybrid Inverter 2 MPPT 3 Phase

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Industry leading 50A/10kW Max Charge/Discharge Rate Automatic UPS Switching Supports Peak Shaving Mode Supports Unbalanced and half-wave loads on both the Grid and Backup Port Compatible with multiple brands of lithium battery models Increased battery protection and operation features to extend battery life
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S6-EH3P10K-H
AC Max. Apparent Power	10 kVA
AC Nominal Voltage	3/N/PE 380V/400V
AC Operating Frequency	50/60 Hz
AC Output Power	10 kW
Connection Type	DC: MC4/ AC: Quick Connection Plug
Communication Port	CAN RS485 Ethernet Optional: Wi-Fi Cellular LAN
AC Output Current	15.2 Amp
Battery	Li-Ion - Batt Voltage Range: 120-600V
Cooling Method	Natural Convection
DC Input Power	16 kW
DC Input Voltage	1000 Volt
DC Nominal Voltage	600 Volt
DC MPPT Voltage Range	200-850 Volt
DC Start-up Voltage	160 Volt
DC Max. Input Current	16 Amp
Display Type	LED + Bluetooth + APP
Depth	230 mm
Efficiency	98%
European Weighted Efficiency	97.50%
Height	500 mm
IP Rating	IP66
Max. Operating Altitude	4000 Mtr
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	3 Phase
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Topology	Transformerless
Total Harmonic Distortion	<2%
Width	600 mm
