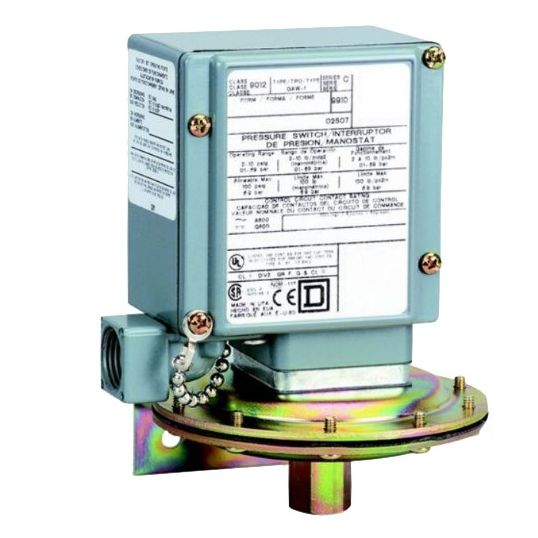

Schneider Pressure Switch Heavy Duty DiapHragm Actuated 1NO-1NC SPDT 137.9-4653.96 kPa

$Schneider\Schneider_SQD9012GAW1_6.jpg$

Description

Pressure Switch Heavy Duty Diaphragm Actuated, Single Stage Adjustable Differential, 1NO-1NC, SPDT, Operating Pressure: 137.9-4653.96 kPa, Differential Pressure: 186.16-896.32 kPa, Maximum Pressure: 4653.96 kPa, Accuracy: 4%, Diaphragm Actuator, Electromechanical Pressure Sensor, Screw Clamp, 22-12 AWG, Cable Entry: 0.5 in NPT Conduit, -23 to 85 deg C, Die-Cast Aluminium Alloy 380, Nitrile Buna-N, Metallic, IP66, 138.43 mm Height, 88.9 mm Width, 66.8 mm Depth

Key Specifications

Barcode (EAN-13)	785901024828
SKU	SQD9012GBW2
Brand	Schneider
Range Name	Square D Class 9012
Product Type	Pressure & Vacuum Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	9012GBW2-NLA
Accuracy	4%
Actuator Material	Nitrile Buna-N
Actuator Type	Diaphragm
Contact Configuration	1 Normally Opened & 1 Normally Closed SPDT
Cable Entry	0.5in NPT Conduit
Depth	66.8 mm
Differential Pressure Range	186.16-896.32 kPa
Height	138.43 mm
Housing Material	Die-Cast Aluminium Alloy
Operating Mode	Single Stage Adjustable Differential
IP Rating	IP66
Maximum Allowable Pressure	4653.96 kPa
Temperature	-23 to 85 deg C
Operating Pressure Range	137.9-4653.96 kPa
Sensor Type	Electromechanical Pressure
Terminal Capacity	Screw Clamp/22-12 AWG
Width	88.9 mm
