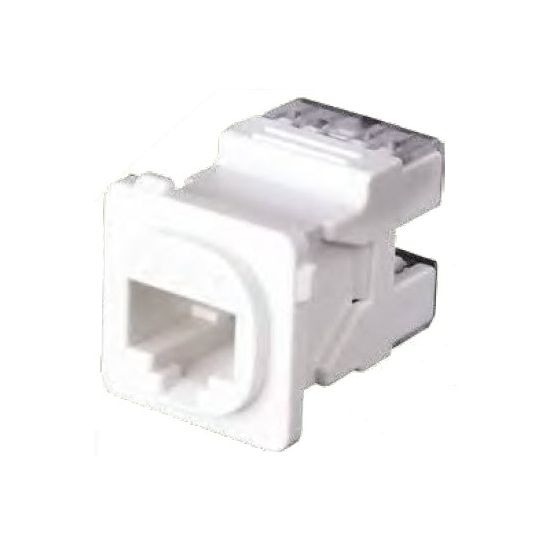

Stronglink Outlet Mechanism Cat6 UTP RJ45 8 Pin White

Description

Outlet Mechanism Cat6 UTP, ? 1.5 Amp, 22-26 AWG, RJ45 Connector, Cat6 Unscreened Cable, ? 20 mOhm Contact Resistance, ? 500 MOhm Insulation Resistance, 8 Pins, ? 133 N Plug Retention Force, ? 750 Mating Cycles Durability, Flammability: UL94V-0, Flame Retardant Plastic Housing, 50 µ-in Gold Over Nickel Contact Plating, White,-10 to 60 deg C

Key Specifications

Barcode (EAN-13)	9337376005980
SKU	STKJC6WH
Brand	Stronglink

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low profile body fits directly into Clipsal/HPM wall plates 8-position unscreened modular connector (RJ45) with 50 µ-in of gold over nickel contacts Colour coded for T568A/B termination Suitable for Category 6/Class E links and channels UL certified Cat 6 link/channel performance
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	STROJC6WH
Cable Type	Cat6 Unscreened
Colour	White
Conductor Size	22-26 AWG
Connector	RJ45
Contact Plating Material	50 micron Gold Over Nickel
Contact Resistance	20 mOhm
Current	1.5 Amp
Durability	? 750 Mating Cycles
Flammability	UL94V-0
Housing Material	Flame Retardant PVC
Insulation Resistance	500 MOhm
Number of Pins	8 Pin
Temperature	-10 to 60 deg C
