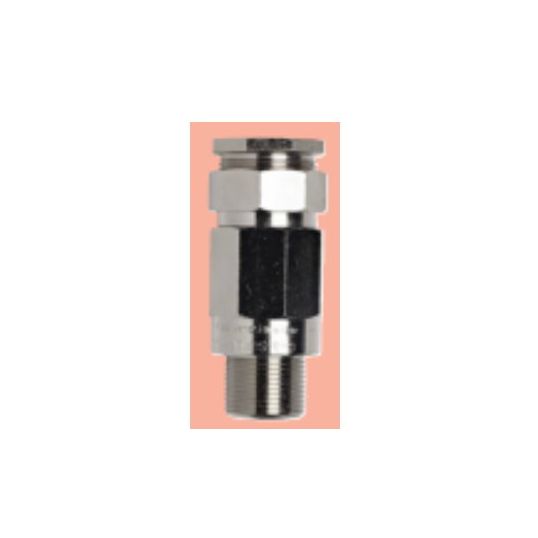

Surefit Hazardous Area Cable Gland Armoured 11.5-13.5mm M20 x 1.5 IP66/68

$Surefit\Surefit_FWPM_Glands.jpg$

Description

Nickel plated brass cable glands for use with circular armoured cables to secure the cable and armour to provide electrical continuity between the amour and the entry thread of the gland and the enclosure and to provide an Explosion Protected, Weatherproof and Dust Excluding Ignition Proof entry into panels or enclosures that meet these requirements. The cable glands in this range are suitable for use in machine and equipment construction, measuring and regulation equipment, construction site installation and many other applications where a robust Explosion Protected, armoured, Weatherproof gland type termination is required.

Key Specifications

Barcode (EAN-13)	9323952340330
SKU	SURFWPM1
Brand	Surefit
Range Name	Type FWPM
Product Type	Cable Glands Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For explosion protected, unarmoured cable applications Nickel plated brass cable glands for use with circular armoured cables to secure the cable and armour to provide electrical continuity between the amour and the entry thread of the gland and the enclosure and to provide an explosion protected, weatherproof and dust excluding ignition proof entry into panels or enclosures that meet these requirements Suitable for use in machine and equipment construction, measuring and regulation equipment, construction site installation and many other applications where a robust explosion protected, armoured, weatherproof gland type termination is required
Standard Pack Size	16
UNSPSC Class	39121400
UOM	EA
Vendor Product	FWPM1
Body Material	Brass
Finish	Nickel Plated
Hazardous Area Rating	Ex db I/IIC Ex eb I/IIC Ex ta IIIC
IP Rating	IP66/68
Protrusion Length	54 mm
Max. Bedding OD	8.8 mm
Max. Sheath OD	13.5 mm
Min. Sheath OD	11.5 mm
Min. Armour Wire	0.9 mm
Max. Armour Wire	0.9 mm
Thread Pitch	1.5 mm
Seal Material	Neoprene
Thread Size	M20 x 1.5 mm
Width Across Corners	26.9 mm
Width Across Flats	23.3 mm
Thread Length	15.9 mm
