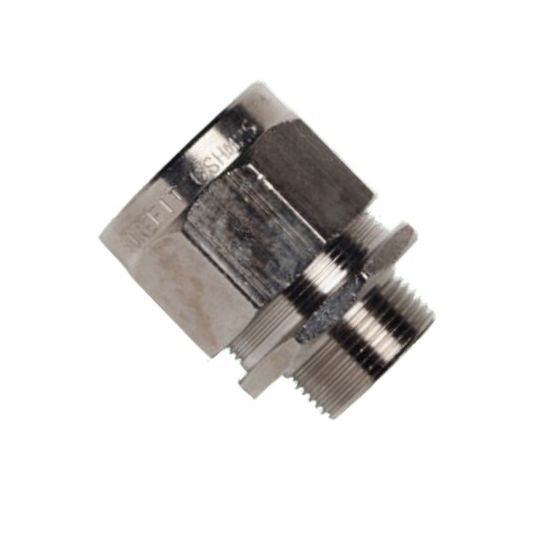

Surefit Cable Gland EMC VSD Screened Cable M20 x 1.5 8.1-15.2mm IP66/68

Description

Cable Gland, EMC VSD Screened Cable, M20 x 1.5, 11.3 mm Thread Length, 1.5 mm Pitch, 8.1 mm Min. Sheath OD, 15.2 mm Max. Sheath OD, 25.4 mm Width Across Flats, 29.4 mm Width Across Corners, 30 mm Protrusion Length, 9.8 mm Max. Bedding OD, IP66/68, Brass Body, Nickel Plated Finish, 20/Pack

Key Specifications

SKU	SURGSHM20A
Brand	Surefit
Range Name	Type GSHM
Product Type	Cable Glands EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Nickel plated brass cable glands for use with circular armoured or braided cables to secure the amour or braid and to provide electrical continuity between the armour or braid, the entry thread of the gland and the panel or enclosure Suitable for use in machine and equipment construction, measuring and regulation equipment, construction site installation and many other applications where a robust armoured or braided non weatherproof gland type termination is required
Standard Pack Size	20
UNSPSC Class	39121400
UOM	EA
Vendor Product	GSHM20A
IP Rating	IP66/68
Thread Size	M20 x 1.5
Body Material	Brass
Finish	Nickel Plated
Thread Pitch	1.5 mm
Thread Length	11.3 mm
Width Across Corners	29.4 mm
Width Across Flats	25.4 mm
Max. Sheath OD	15.2 mm
Min. Sheath OD	8.1 mm
