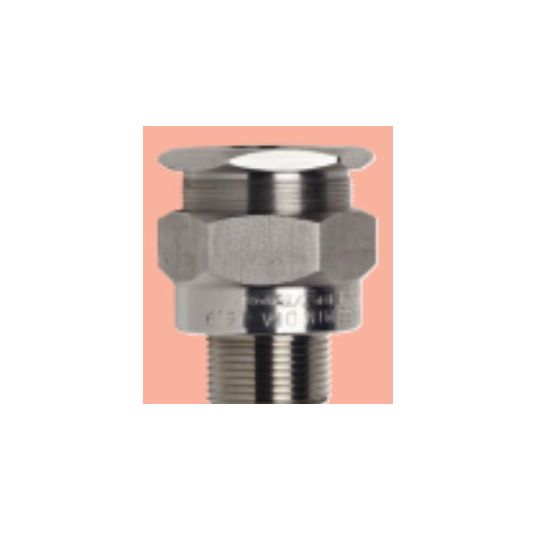

Surefit Hazardous Area Cable Gland Unarmoured 13.8-17.5mm M25 x 1.5 IP66/68

$Surefit\Surefit_GWPM_GWP_Glands.jpg$

Description

Nickel plated brass cable glands for use with circular unarmoured cables to secure the cable and to provide an Explosion Protected, Weatherproof and Dust Excluding Ignition Proof entry into panels or enclosures that meet these requirements. The cable glands in this range are suitable for use in machine and equipment applications where an Explosion Protected, unarmoured, Weatherproof gland type termination is required.

Key Specifications

Barcode (EAN-13)	9323952341108
SKU	SURGWPM2
Brand	Surefit
Range Name	Type GWPM
Product Type	Cable Glands Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For explosion protected, unarmoured cable applications Nickel plated brass cable glands for use with circular unarmoured cables to secure the cable and to provide an explosion protected, weatherproof and dust excluding ignition proof entry into panels or enclosures that meet these requirements Suitable for use in machine and equipment applications where an explosion protected, unarmoured, weatherproof gland type termination is required
Standard Pack Size	12
UNSPSC Class	39121400
UOM	EA
Vendor Product	GWPM2
Body Material	Brass
For Use With	Unarmoured Cables
Finish	Nickel Plated
Hazardous Area Rating	Ex db I/IIC Ex eb I/IIC Ex ta IIIC
IP Rating	IP66/68
Max. Sheath OD	17.5 mm
Min. Sheath OD	13.8 mm
Protrusion Length	31.7 mm
Seal Material	Neoprene
Thread Length	15 mm
Thread Pitch	1.5 mm
Thread Size	M25 x 1.5 mm
Width Across Flats	33.3 mm
Width Across Corners	36.1 mm
