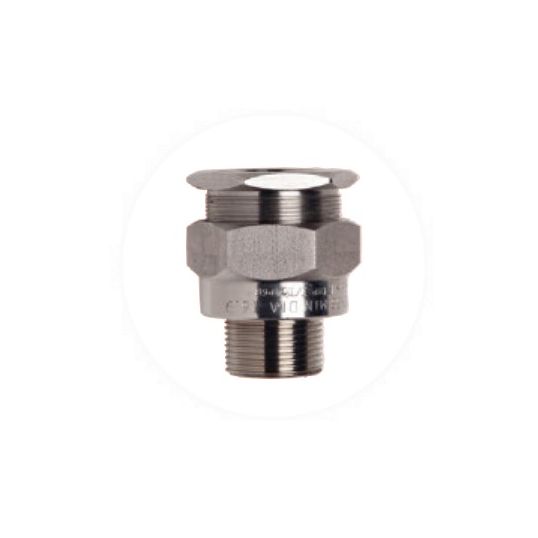

Surefit Hazardous Area Cable Gland Unarmoured 61-65.9mm M75 x 1.5 IP66/68

$Surefit\Surefit_GWPM.jpg$

Description

Hazardous Area Cable Gland, Unarmoured, M75 x 1.5, 24 mm Thread Length, 1.5 mm Pitch, 61 mm Min. Sheath OD, 65.9 mm Max. Sheath OD, 92 mm Width Across Flats, 99.7 mm Width Across Corners, For: Unarmoured Cable, Exdb I/IIC, Exeb I/IIC, Ex ta IIIC, 40.5 mm Protrusion Length, IP66/68, Neoprene Seal, Brass Body, Nickel Plated Finish

Key Specifications

SKU	SURGWPM7C
Brand	Surefit
Product Type	Cable Glands Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For explosion protected, unarmoured cable applications Nickel plated brass cable glands for use with circular unarmoured cables to secure the cable and to provide an explosion protected, weatherproof and dust excluding ignition proof entry into panels or enclosures that meet these requirements Suitable for use in machine and equipment applications where an explosion protected, unarmoured, weatherproof gland type termination is required
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	GWPM7C
Body Material	Brass
For Use With	Unarmoured Cable
Finish	Nickel Plated
Hazardous Area Rating	Exdb I/IIC Exeb I/IIC Ex ta IIIC
IP Rating	IP66/68
Max. Sheath OD	65.9 mm
Min. Sheath OD	61 mm
Protrusion Length	40.5 mm
Seal Material	Neoprene
Thread Length	24 mm
Thread Pitch	1.5 mm
Width Across Flats	92 mm
Width Across Corners	99.7 mm
