Diginet Light Dimmer Mechanism Rotary Universal 2 Wire 240V 400W White

Description

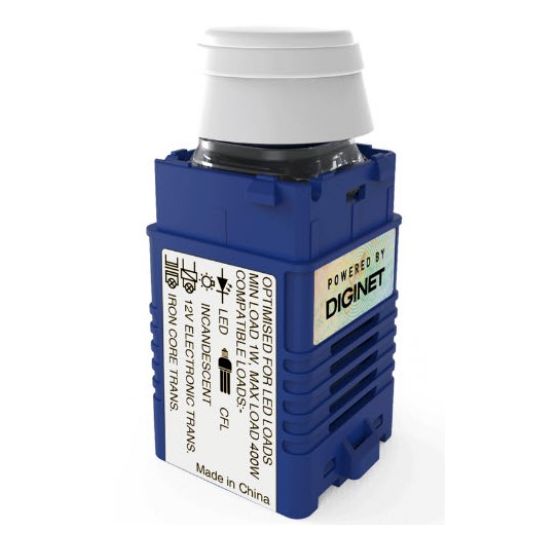

The Diginet MEDM Adaptive Phase Dimmer is designed in Australia to provide optimised dimming of LED based lamps and drivers, this high quality, two-wire phase control wall plate dimmer has a minimum load rating of 2W, allowing it to adapt to a wide range of available LED drivers. Although optimised for LED lighting loads, this dimmer also provides excellent compatibility with other common lamps types such as incandescent lamps, 12V halogen (dichroic) lamps /transformers and CFL's.

Key Specifications

Barcode (EAN-13)	9346051003630
SKU	SYLMEDM
Brand	Diginet
Product Type	Dimmer Mechanisms

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Maximum 400 W load Incorporates filtering to reduce load brightness variation Stable operation with most non-dimmable lamps (to a limited dimming level, lamp dependent) LED Illuminated rotary dial for smooth and easy min/max adjustment No neutral wire connection required for wall-plate retrofit installation (2-wire dimmer) Incorporates a thermal fuse to protect itself against overheating Incorporates filtering to reduce load brightness variation under conditions of line voltage ripple signal injection Analogue rotary dial with hardstop at maximum and minimum Green LED indicator Indicator stays ON when lights are switched off
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	MEDM
Control Type	Rotary
Colour	White
Depth	41 mm
IP Rating	IP20
Height	41 mm
For Use With	Wall Switch Plate Apertures
Frequency	50 Hz
Mounting Method	Wall
Number of Wires	2 Wire
Temperature	0 to 50 deg C
Voltage	240 Volt
Wattage	400 Watt
Width	23.7 mm
