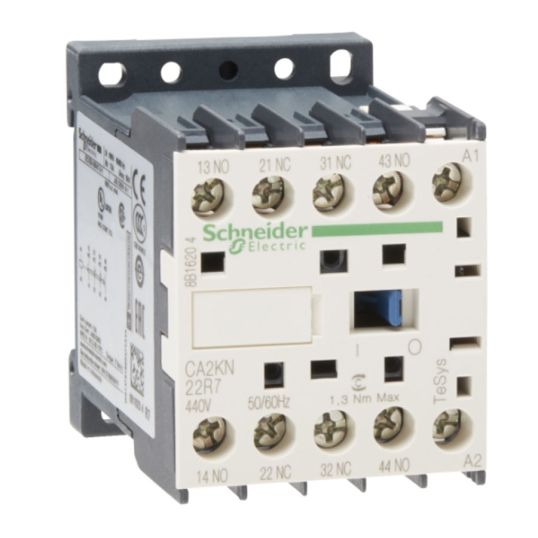

Schneider Control Relay 4P 5mA 440V 2NO-2NC DIN Rail

$Schneider\Schneider_CA2KN22R7.jpg$

Description

TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 440V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50deg C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw

Key Specifications

Barcode (EAN-13)	3389110481358
SKU	TEECA2KN22R7
Brand	Schneider
Range Name	TeSys Model K

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	TeSys Control Relays provide a cost-effective solution to a simple application Same design as TeSys D, K and SK contactors Compatible for all the voltages on the market Multiple international certifications
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA2KN22R7
Contact Configuration	2 Normally Opened & 2 Normally Closed
Depth	57 mm
IP Rating	IP2X
Height	58 mm
Mounting Method	DIN Rail
Operating Time	10-20 ms NO/15-25 ms NC/5-15 ms NC
Operating Coil Voltage	440 Volt AC
Number Of Poles	4 Pole
Temperature	-25 to 50 deg C
Terminal Connection	Screw
Width	45 mm
