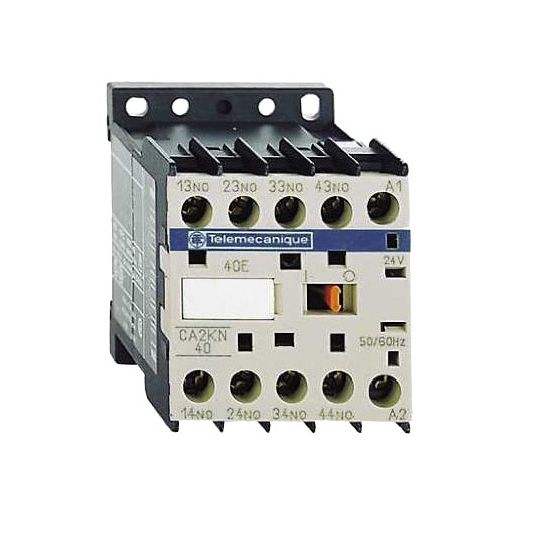

Schneider Contactor Control Relay Switching 4 Pole 10A 24V 4NO DIN Rail/Plate Mount

Description

Contactor Control Relay Switching, AC15 Rating: 240 Volt AC at 10 Amp, 24 Volt AC, 4 NO, 4 Pole, Operating Time: 10-20 ms NO, Screw Clamp, DIN Rail/Base/Plate Mount, IP2x, -25 to 50 deg C, 58 mm Height, 45 mm Width, 57 mm Depth

Key Specifications

Barcode (EAN-13)	3389110500325
SKU	TEECA2KN40B7
Brand	Schneider
Range Name	TeSys Model K
Product Type	Contactors Switching

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA2KN40B7
Contact Configuration	4 Normally Opened
AC15 Rating	10 Amp 240 Volt
Depth	57 mm
Height	58 mm
IP Rating	IP2x
Mounting Method	DIN Rail/Base/Plate
Number Of Poles	4 Pole
Operating Coil Voltage	24 Volt AC
Operating Time	10-20 ms NO
Temperature	-25 to 50 deg C
Width	45 mm
Terminal Connection	Screw Clamp
