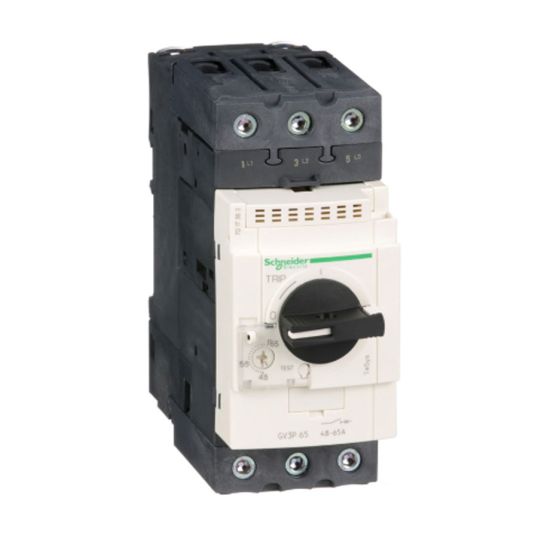

Schneider Thermal Magnetic Motor Rated Circuit Breaker 3P 48-65A 100kA 55kW 690V DIN Rail Mount

$Schneider\Schneider_SHNGV3P65.jpg$

Description

TeSys GV motor circuit breaker, 3 poles (3P), 65A/690 Volt, for 3-phase motor applications 30 kW at 400 Volt. It provides a thermal-magnetic protection with a thermal setting range 48-65 Amp, magnetic tripping at 15xIn, high breaking capacity Icu 50 kA at 400 Volt. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACH).

Key Specifications

Barcode (EAN-13)	3389119405416
SKU	TEEGV3P65
Brand	Schneider

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	New modern look and feel of all machines Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4) Easier to install and operate with multi-standard screws Sturdy and long-lasting power connection with EverLink terminals
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	GV3P65
Current	48-65 Amp
Depth	136 mm
Frequency	50/60 Hz
Height	132 mm
Interrupt Capacity	100 kA
IP Rating	IP20
Magnetic Rating	910 Amp
Load Rating	55 kW
Number Of Poles	3 Pole
Mounting Method	DIN Rail
Operator Type	Operators
Operating Cycles	50000 Cycles
Please Note	Class 10
Temperature	-20 to 60 deg C
Terminal Type	Screw Clamp
Width	55 mm
Voltage	690 Volt
