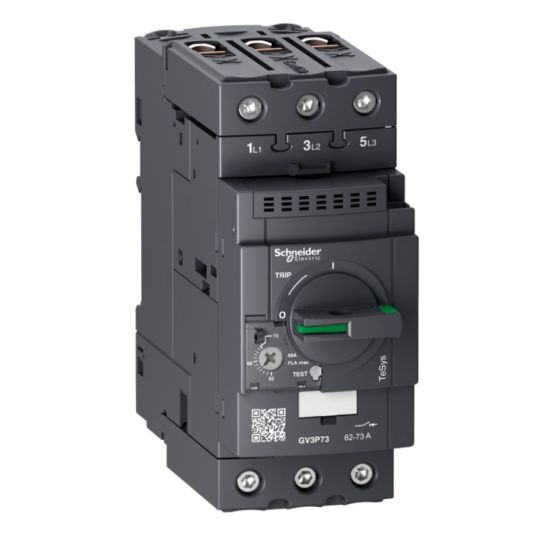

Schneider Thermal Magnetic Motor Rated Circuit Breaker 3P 62-73A 65kA 55kW 690V DIN Rail Mount

$Schneider\Schneider_GV3P73.jpg$

Description

TeSys GV motor circuit breaker, 3 poles (3P), 73A/690 Volt, for 3-phase motor applications 37 kW at 400 Volt. It provides a thermal-magnetic protection with a thermal setting range 62-73 Amp, magnetic tripping at 15xIn, high breaking capacity Icu 50 kA at 400 Volt. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 20000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACH).

Key Specifications

Barcode (EAN-13)	3606481304513
SKU	TEEGV3P73
Brand	Schneider
Range Name	TeSys GV3

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	New modern look and feel of all machines Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4) Easier to install and operate with multi-standard screws Sturdy and long-lasting power connection with EverLink terminals
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	GV3P73
Depth	136 mm
Current	62-73 Amp
Frequency	50/60 Hz
Interrupt Capacity	65 kA
IP Rating	IP20
Height	132 mm
Load Rating	55 kW
Magnetic Rating	1120 Amp
Mounting Method	DIN Rail
Operating Cycles	50000 Cycles
Number Of Poles	3 Pole
Operator Type	Operators
Please Note	Class 10
Temperature	-20 to 60 deg C
Terminal Type	Screw Clamp
Voltage	690 Volt
Width	55 mm
