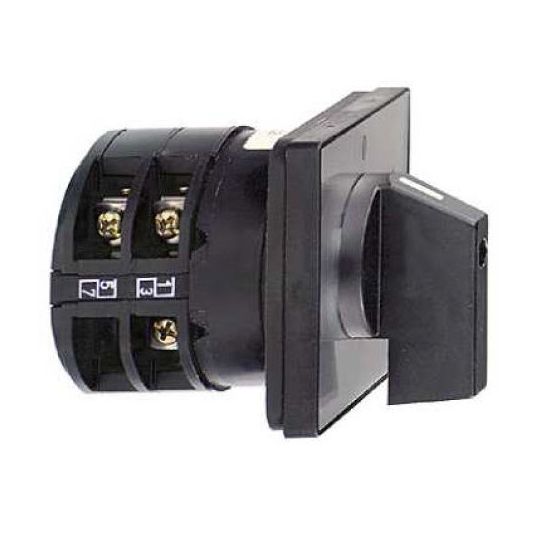

Schneider Cam Switch Isolator Switching 3P 8kW Rear Mount

Description

Cam Switch Isolator Switching, AC23 Rating: 8 kW, 32 Amp, 3 Pole, Slow Break, Stayput Action, 60 deg, Isolator, 2 Positions, Legend: 0 1, Rotary Actuator, Captive Screw Clamp Terminal, Tightening Torque: 1.2 Nm, Mechanical Durability: 300000 Cycles, Rear/Panel Mount, IP40, Plastic, -25 to 55 deg C, 64 mm Height, 64 mm Width, 93 mm Depth

Key Specifications

Barcode (EAN-13)	3389110081152
SKU	TEEK30C003AP
Brand	Schneider
Product Type	Cam Switches Isolator

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	K30C003AP
AC23 Rating	8 kW
Actuator	Rotary
Connection Type	Captive Screw Clamp
Depth	93 mm
Height	64 mm
IP Rating	IP40
Legend	0 1
Mechanical Durability	300000 Cycles
Mounting Method	Rear/Panel
Number Of Poles	3 Pole
Number of Positions	2 Posn
Operation Type	Slow Break/Stayput
Switching Angle	60 deg
Switching Function	Isolator
Temperature	-25 to 55 deg C
Tightening Torque	1.2 Nm
Width	64 mm
