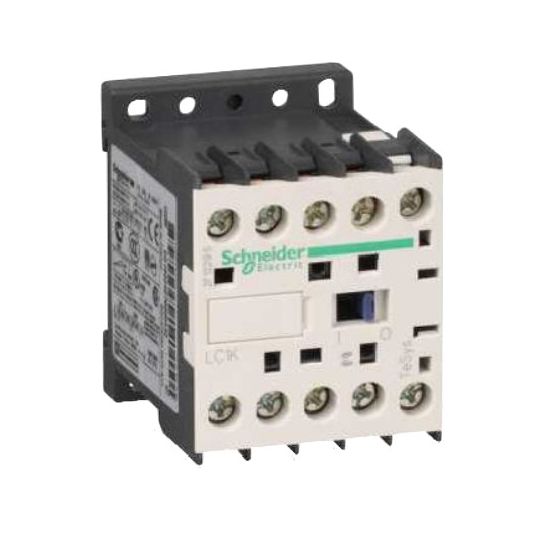

Schneider Contactor General Purpose AC Operated 3 Pole 3kW 6A AC3 20A AC1 230-240V 1NO Auxiliary DIN Rail/Plate Mount

Description

General Purpose AC Operated Contactor, 230-240 Volt AC Coil Voltage, 230-240 Volt AC Control Circuit, 690 Volt AC Contact Voltage, 1 Normally Opened Aux Configuration, 3 kW AC3 AC3 Rating, 6 Amp AC3 AC3 Rating, 20 Amp AC1 AC1 Rating, 3 Pole, 10-20 ms Coil De-Energisation and NO Opening/10-20 ms Coil Energisation and NO Closing Operating Time, Screw/Clamp Terminal, DIN Rail/Plate Mounting, IP2X, -50 to 80 deg C, 58 mm Height, 45 mm Width, 57 mm Depth

Key Specifications

Barcode (EAN-13)	3389110487695
SKU	TEELC1-K0610U7
Brand	Schneider
Range Name	TeSys Model K
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1K0610U7
AC1 Rating (Amps)	20 Amp AC1
AC3 Rating (Amps)	6 Amp AC3
AC3 Rating (kW)	3 kW AC3
Contact Configuration	1 Normally Opened Aux
Contact Voltage	690 Volt AC
Control Circuit Voltage	230-240 Volt AC
Depth	57 mm
Height	58 mm
IP Rating	IP2X
Mounting Method	DIN Rail/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	230-240 Volt AC
Operating Time	10-20 ms Coil De-Energisation and NO Opening/10-20 ms Coil Energisation and NO Closing
Temperature	-50 to 80 deg C
Terminal Connection	Screw/Clamp
Width	45 mm
