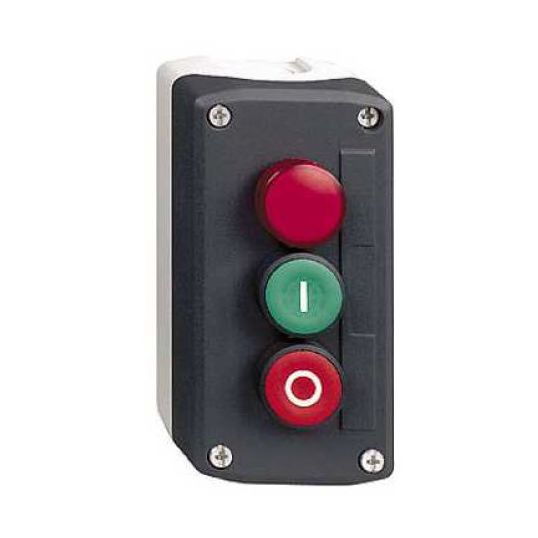

Schneider Pushbutton Control Station 1NO-1NC Polycarbonate Grey Cover Green & Red Operator Spring Return With LED Pilot

Description

Pushbutton Control Station Complete, 10 Amp, 2 Operators, 1NO-1NC, Slow Break, Spring Return, Legend: O-I, White, Pushbutton, Screw Clamp Terminal, Pilot Light, Hub Size: 22 mm Diameter, IP66, IP67, IP69, IP69K, Polycarbonate, Light Grey, Dark Grey Cover, Green/Red Operator, -25 to 70 deg C, 136 mm Height, 68 mm Width, 65.5 mm Depth

Key Specifications

Barcode (EAN-13)	3389110114515
SKU	TEEXAL-D363M
Brand	Schneider
Product Type	Control Stations

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	XALD363M
Actuator	Pushbutton
Colour	Light Grey/Dark Grey Cover/Green/Red Operator
Connection Type	Screw Clamp
Contact Configuration	1 Normally Opened & 1 Normally Closed
Contact Mode	Slow Break
Depth	65.5 mm
Enclosure Material	Polycarbonate
Height	136 mm
Hub Size	22 mm Diameter
Interrupt Rating	10 Amp
IP Rating	IP66/67/69/69K
Legend	O-I
Legend Colour	White
Number of Operators	2 Modules
Operator Type	Spring Return
Width	68 mm
Temperature	-25 to 70 deg C
