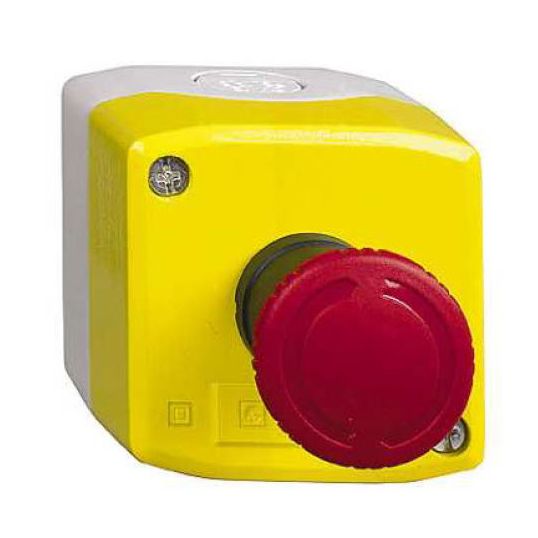

Schneider Emergency Stop Operator 40mm Plastic Complete Trigger Action and Mechanical Latching 2N.C Red 22mm

Description

Emergency Stop Operator, 600 Volt, 10 Amp, Mushroom Actuator Head, 2 Normally Closed Configuration, Turn To Release Reset Method, Trigger Action and Mechanical Latching Operator, Trigger/Mechanical Latching Operator Action, 300000 Cycles, 0.8-1.2 Nm Tightening Torque, Screw/Clamp Terminal, Panel Mounting, 22 mm Mounting Hole Diameter, IP66/67/69/69K, NEMA 13/4X, Polycarbonate Housing, Silver Alloy (Ag/Ni) Contact, Red, -40 to 70 deg C, 40 mm Diameter

Key Specifications

Barcode (EAN-13)	3389110113648
SKU	TEEXALK178F
Brand	Schneider
Product Type	Push Buttons Complete

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	XALK178F
Actuator Head	Mushroom
Colour	Red
Contact Material	Silver Alloy (Ag/Ni)
Current	10 Amp
Contact Configuration	2 Normally Closed
Diameter	40 mm
Housing Material	Polycarbonate
Mounting Hole Diameter	22 mm
IP Rating	IP66/67/69/69K
NEMA Rating	NEMA 13/4X
Operating Cycles	300000 Cycles
Mounting Method	Panel
Operator Action	Trigger/Mechanical Latching
Operator Type	Trigger Action and Mechanical Latching
Temperature	-40 to 70 deg C
Reset Method	Turn to Release
Tightening Torque	0.8-1.2 Nm
Terminal Connection	Screw/Clamp
Voltage	600 Volt
