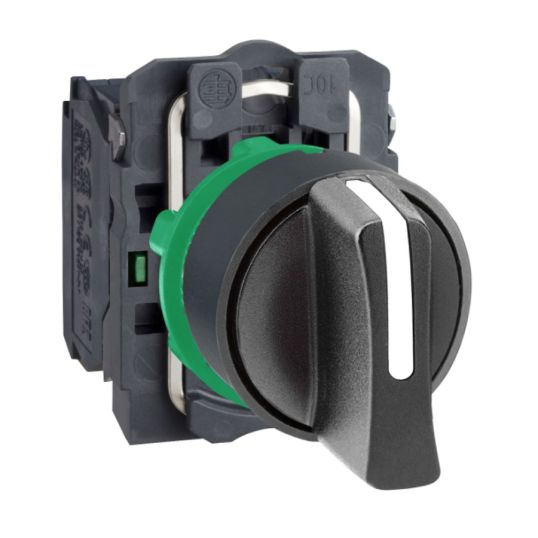

Schneider Harmony XB5 Selector Switch 2NO 22mm 3 Positions Stay Put Plastic Black

Description

Selector Switch, 0.1-6 Amp, 2 Normally Opened Configuration, Stay Put Operator, 1000000 Cycles, 3 at 45 deg Position, Standard Head, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, 0.8-1.2 Nm Tightening Torque, 22.5 mm Mounting Diameter, IP66/68/69K, NEMA 13/4X, Dark Grey Plastic Bezel, Silver Alloy (Ag/Ni) Contact, -40 to 70 deg C, 42 mm Height, 30 mm Width, 70 mm Depth

Key Specifications

Barcode (EAN-13)	3389110903454
SKU	TEEXB5AD33
Brand	Schneider
Range Name	Harmony XB5
Product Type	Selector Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	XB5AD33
Bezel Material	Dark Grey Plastic
Contact Configuration	2 Normally Opened
Contact Material	Silver Alloy (Ag/Ni)
Current	0.1-6 Amp
Depth	70 mm
Head Type	Standard
IP Rating	IP66/68/69K
Height	42 mm
Mounting Diameter	22.5 mm
NEMA Rating	NEMA 13/4X
Number of Positions	3 at 45 deg
Operating Cycles	1000000 Cycles
Operator Type	Stay Put
Temperature	-40 to 70 deg C
Terminal Connection	Screw Clamp/Plug-in/Printed Circuit Board/Faston
Tightening Torque	0.8-1.2 Nm
Width	30 mm
