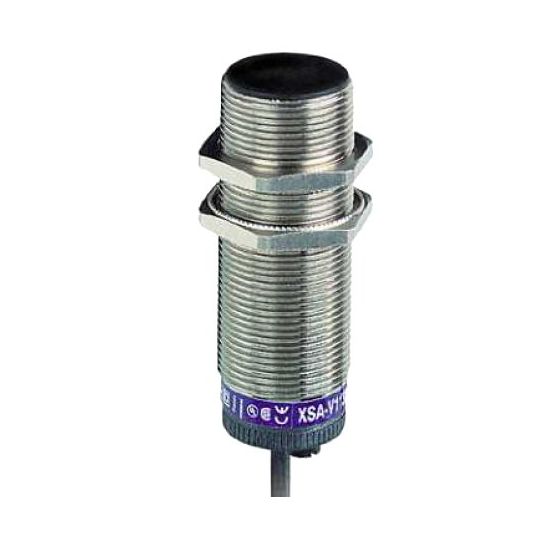

Schneider Proximity Switch Inductive Sensing Shielded Flush M30 24-240V/24-210VDC Discrete 1NC 2m L
Loading...
Description
Proximity Switch Inductive Sensing Shielded Flush, Cylindrical, Sensing Range: >8 to 15 mm, Discrete, 24-240 Volt AC/24-210 Volt DC, 50/60 Hz, 1NC, LED, 2 mtr Cable, Flush Mount, IP67, M30 Nickel Plated Brass, -25 to 70 deg C, Length: 81 mm
Key Specifications
| Barcode (EAN-13) |
3389110528046
|
|---|---|
| SKU |
TEEXSA-V12801
|
| Brand |
Schneider
|
| Range Name |
OsiSense
|
| Product Type |
Proximity Sensors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | XSAV12801-NLA |
| Contact Configuration | 1 Normally Closed |
| Cable Size | 2 mtr |
| IP Rating | IP67 |
| Material | M30 Nickel Plated Brass |
| Light Source | LED |
| Operating Voltage | 24-240 Volt AC/24-210 Volt DC |
| Mounting Method | Flush |
| Output Function | Discrete |
| Sensing Range | >8 to 15 mm |
| Shape | Cylindrical |
| Temperature | -25 to 70 deg C |
