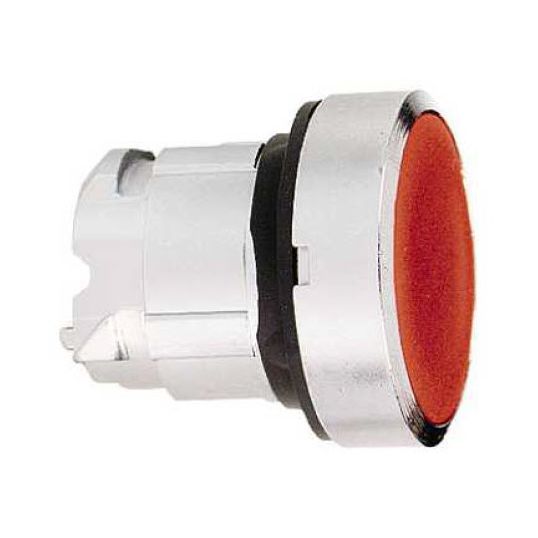

Schneider Pushbutton Actuator Only Flush Head Metal Body k Non Illuminated Momentary Red 22mm Panel

Description

Pushbutton Actuator Flush Head, Non-Illuminated Momentary Action Operator Action, Unmarked Operator Profile, Standard Head, Spring Return Reset Type, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, 0.6 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Diameter, IP66/67/69/69K, Chromium Plated Metal Bezel, Red, -40 to 70 deg C, 22 mm, 29 mm Height, 29 mm Width, 28 mm Depth

Key Specifications

Barcode (EAN-13)	3389110887471
SKU	TEEZB4-BA4
Brand	Schneider
Range Name	Harmony Style 4
Product Type	P/B Actuators Flush

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB4BA4
Bezel Material	Chromium Plated Metal
Colour	Red
Depth	28 mm
Head Type	Standard
Mounting Diameter	22.5 mm
Height	29 mm
IP Rating	IP66/67/69/69K
Operator Action	Non-Illuminated Momentary Action
Mounting Method	Panel
Operator Profile	Unmarked
Reset Type	Spring Return
Size	22 mm
Terminal Connection	Screw Clamp/Plug-in/Printed Circuit Board/Faston
Temperature	-40 to 70 deg C
Width	29 mm
Tightening Torque	0.6 Nm
