HIGHBAY 200-85W 5000K 120D BEAM ANGLE

chevron-left
loader
Loading...

Description

chevron-down

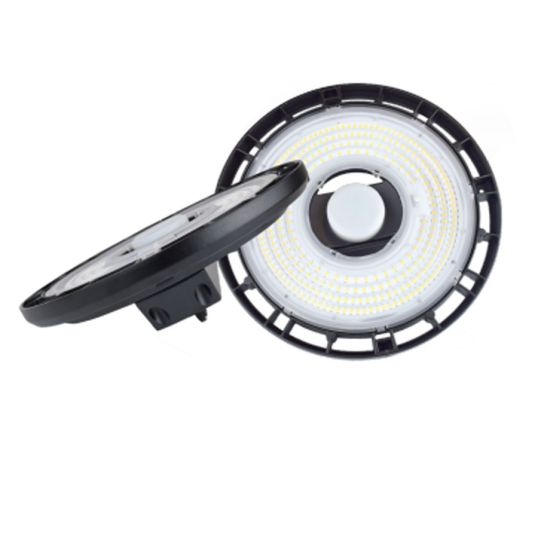

The [SMARTBAY] GEN 2 'ONE BOX' LED Highbay is an industry first bringing together advanced automatic Daylight detection with motion control and integrated wattage selection. With all these technologies packed into one convenient fitting the [SMARTBAY] can be used across virtually any project or application. With an efficacy of up to 198lm/W an IP65 rating and a 5-year warranty we’ve ensured the [SMARTBAY] ticks all the boxes. - High efficacy up to 198lm/W - 0-10V dimmable - Convenient tool-less on-board wattage selection - True 'ONE BOX' design for maximum versatility - Integrated sensor incorporating daylight harvesting and motion detection

Key Specifications

chevron-down
Barcode (EAN-13)
9351426007809
SKU
TEKHS-200D120-SG2
Brand
Teknik Lighting
Range Name
Smartbay
Product Type
Luminaires High Bay

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The [SMARTBAY] GEN 2 'ONE BOX' LED High bay is an industry first bringing together advanced automatic Daylight detection with motion control and integrated wattage selection
  • With all these technologies packed into one convenient fitting, the [SMARTBAY] can be used across virtually any project or application
  • With an efficacy of up to 198 lm/Watt, an IP65 rating and a 5 years warranty, we've ensured the [SMARTBAY] ticks all the boxes
Standard Pack Size 1
UNSPSC Class 39111500
UOM EA
Vendor Product HS-200D120-SG2
Average Lamp Life >=50000 hrs
Beam Angle 120 deg
Colour Designation Daylight
Colour Temperature 5000K
CRI >70

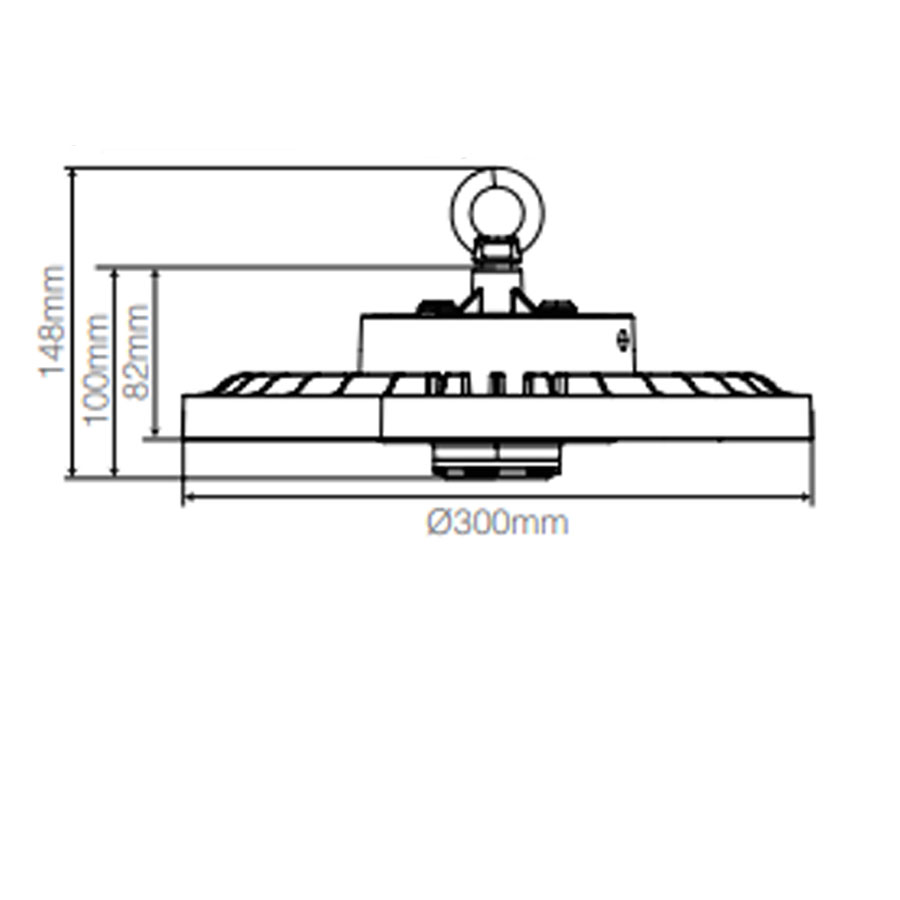

Height 148 mm
Input Frequency 50/60 Hz
Input Voltage 90-305 Volt
IP Rating IP65
Light Source LED
Lumens 16800/19600/28700/36200 lm
Material Aluminium
Mounting Method Chain/Surface
Wattage 85/100/150/200 Watt
Width 300 mm
