Teco Electric Motor Squirrel Cage Induction Mine Spec 4P 0.55kW 3Ph 380/415V Shaft 19mm D80 Frame Foot Mount

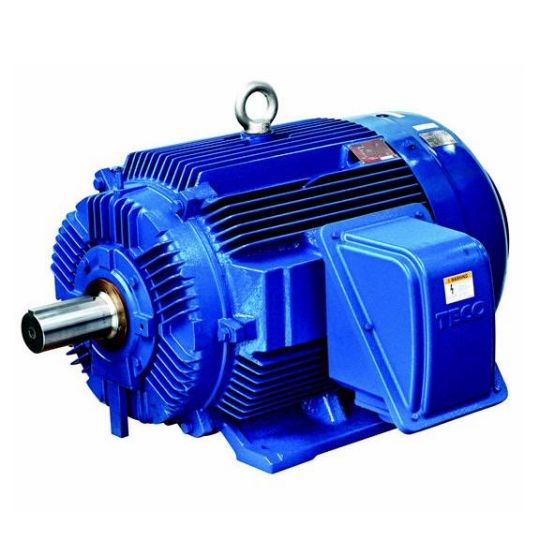

$Teco\Teco_Max_E3.jpg$

Description

Electric Motor Squirrel Cage Induction Mine Spec, 380/415 Volt AC, 1.47 Amp, 0.75 HP, 50 Hz, 3 Phase, 1405 rpm, 0.55 kW Output, 4 Pole, IP66, Frame: D80, 19 mm Shaft, Rotation: Bi Directional-Low Noise, Power Factor: 74 at 100% Load, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Direct On Line Starting, Soft Starter/VVVF Duty, Torque: 3.74 N/m, Foot Mounting, Insulation Class: Class H, Efficiency: 71.5 at 100% Load, Cast Iron Frame, Finish: Orange Paint, 55 deg C, 282.5 mm Length x 168 mm Height

Key Specifications

SKU	TEO001/H0.55D4R
Brand	Teco
Range Name	Max E3 Mining
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled High efficiency motors True IP66 with porous drain plugs Class H insulation system Superior inverter rated insulation (8500 V/microsecond) Precision and rugged cast iron construction including fan Typical temperature rise less than Class E 1.2 service factor at 40 deg C ambient Suitable for 60 deg C ambient at rated output TECO renowned grease relief system
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	001/H0.55D4R
Bearing Type	Ball
Colour	Orange
Current	1.47 Amp
Efficiency	71.5 at 100% Load
Frame	Size D80
Frame Material	Cast Iron
Frequency	50 Hz
Height	168 mm
Horsepower	0.75 kW
Insulation Class	Class H
IP Rating	IP66
Mounting Method	Foot
Phase	3 Phase
Output	0.55 kW
Number Of Poles	4 Pole
Power Factor	74 at 100% Load
Rotation	Bi Directional-Low Noise
Shaft Size	19 mm
Service Factor	1/1.15 p.u at Class B/F
Speed	1405 rpm
Starting Method	DOL Soft Starter/VVVF Duty
Temperature	55 deg C
Torque Rating	3.74 Nm
Voltage	380-415 Volt AC
