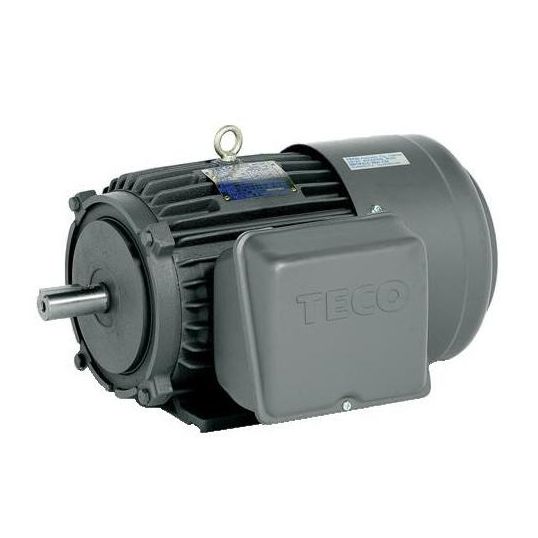

Teco Electric Motor Squirrel Cage Induction 4P 4kW 1Ph 240/480V D112M Frame Foot Mount

$Teco\Teco_BECY.jpg$

Description

Electric Motor Squirrel Cage Induction, 240/480 Volt AC, 25/12.5 Amp, 4 kW, 50 Hz, 1 Phase, 1440 rpm, 4 Pole, IP44, Frame: D112M, Shaft Size: 28 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 26.5 N/m, Foot Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron, 449 mm Length x 265 mm Height

Key Specifications

SKU	TEO032/E0004BE4
Brand	Teco
Range Name	BECY Cast Iron Metric
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled Highest quality insulation system utilizing Class H and F materials Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Steel terminal/capacitor box and fan cover Manual overload protection
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	032/E0004BE4
Bearing Type	Single Row Deep Groove
Current	25/12.5 Amp
Frame	Size D112M
Frequency	50 Hz
Height	265 mm
IP Rating	IP44
Insulation Class	Class H/F
Horsepower	4 kW
Material	Cast Iron
Number Of Poles	4 Pole
Mounting Method	Foot
Phase	1 Phase
Shaft Size	28 mm
Rotation	Bi Directional
Speed	1440 rpm
Torque Rating	26.5 Nm
Temperature	-10 to 40 deg C
Voltage	240-480 Volt AC
