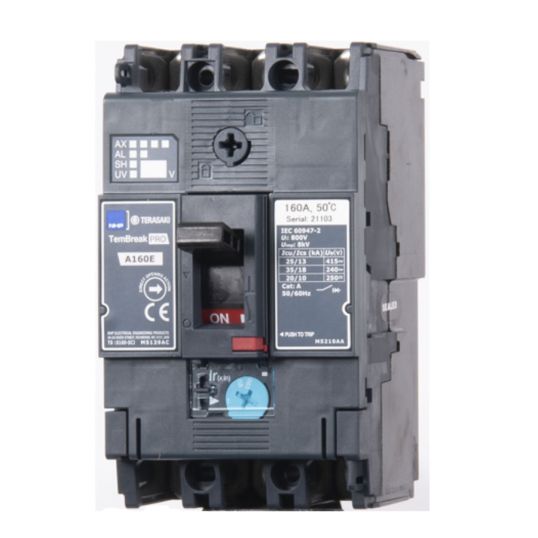

Terasaki TemBreak Pro Moulded Case Circuit Breaker 160 Frame 25kA 25PP 3 Pole 125A Adjustable Thermal Fixed Magnetic

Description

Moulded Case Circuit Breaker, 125 Amp, 25 kA Interrupt Capacity, 3 Pole, 160 AF Frame, Adjustable Thermal Fixed Magnetic, Screw Terminal, DIN/Panel Mounting, 70 deg C, 75mm Width x 95mm Depth

Key Specifications

SKU	TERA160E13125TF
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution, motor starting as well as energy metering and communications Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status - maximising machine and user safety Suits XEP chassis, with panelboard options Trip unit options include thermal magnetic or electronic types
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A160E13125TF
Current	125 Amp
Depth	95 mm
Frame Type	160 AF
Interrupt Capacity	25 kA
Mounting Method	DIN Rail/Panel
Number Of Poles	3 Pole
Temperature	70 deg C
Terminal Type	Screw
Trip Type	Adjustable Thermal Fixed Magnetic
Width	75 mm
