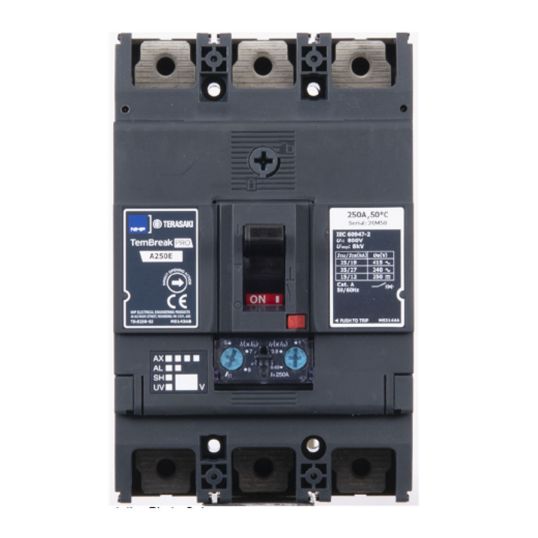

Terasaki TemBreak Pro MCCB 160A 25kA 3 Pole 690VAC Adjustable Thermal Adjustable Magnetic Trip

$Terasaki\Terasaki_A250E3160TM.jpg$

Description

MCCB, 690 Volt AC, 160 Amp, 50/60 Hz, 25 kA Interrupt Capacity, 3 Pole, 250 AF Frame, Adjustable Thermal Adjustable Magnetic Trip, Bolt Terminal, Operating:-5 to 70 deg C, Storage:-10 to 70 deg C, 165mm Height x 105mm Width x 95mm Depth

Key Specifications

SKU	TERA250E3160TM
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution, motor starting as well as energy metering and communications Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status-maximising machine and user safety Panel mount standard, with other mounting options Suits XBP chassis, with panelboard options Trip unit options include thermal magnetic or electronic types
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A250E3160TM
Current	160 Amp
Depth	95 mm
Frame Type	250 AF
Frequency	50/60 Hz
Height	165 mm
Interrupt Capacity	25 kA
Number Of Poles	3 Pole
Temperature	Operating:-5 to 70 deg C/Storage:-10 to 70 deg C
Terminal Type	Bolt
Trip Type	Adjustable Thermal Adjustable Magnetic
Voltage	690 Volt
Width	105 mm
