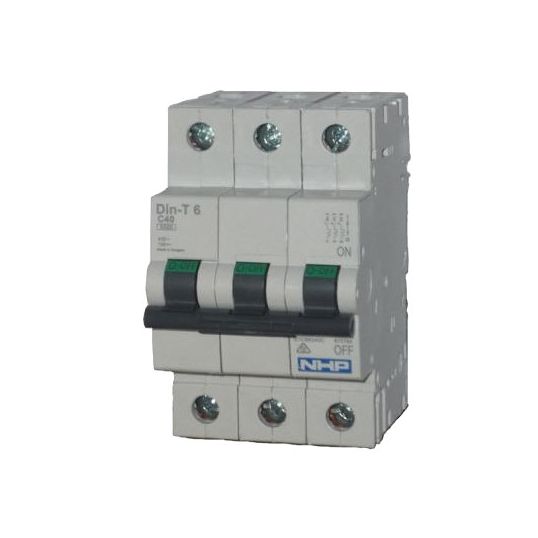

Terasaki Miniature Circuit Breaker D Curve 40Amp 6 kA 3Pole 3Module 54mm DIN 35mm Rail Mount

Description

Miniature Circuit Breaker D Curve, 415 Volt, 40 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 3 Module 54 mm, 3 Pole, 4.5 Nm Top/Bottom Tightening Torque, Pin/Fork Terminal, 0.75-25 sq-mm Flexible/1-35 sq-mm Rigid, IP20/40, DIN Rail Mounting, 25 to 55 deg C, 86 mm Height, 54 mm Width, 76 mm Depth

Key Specifications

Barcode (EAN-13)	5413656758211
SKU	TERDTCB6340D
Brand	Terasaki
Range Name	Din-T6
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	DIN-T6 MCBs feature 6 kA short circuit rating C curve for general light, power and motor starting applications D trip curve for high inrush, motor starting and transformer applications Pad lockable and sealable toggle restricts unauthorized action Large capacity terminals Fast connection pin/fork bus bar comb or NC or GB bus bar chassis Suits pole-covers, loadcentres and the Concept range of panelboards
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DTCB6340D-NLA
Cable Size	0.75-25 sq-mm Flexible / 1-35 sq-mm Rigid
Current	40 Amp
Depth	76 mm
Frequency	50/60 Hz
Height	86 mm
Interrupt Capacity	6 kA
IP Rating	IP20/40
Modules	3 Module 54 mm
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Temperature	25 to 55 deg C
Terminal Type	Pin/Fork
Tightening Torque	4.5 Nm
Voltage	415 Volt
Width	54 mm
