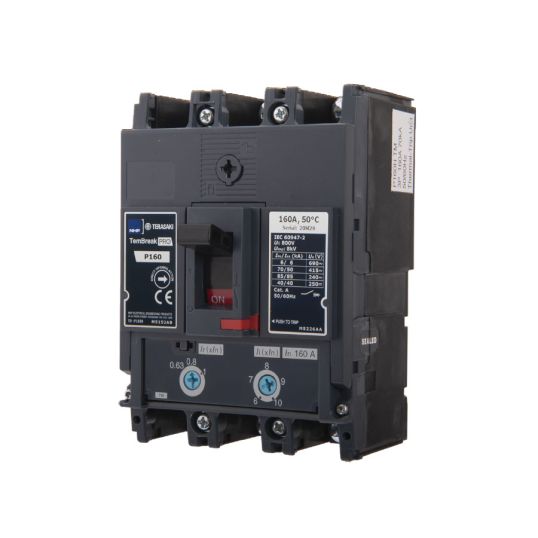

Terasaki TemBreak Pro Moulded Case Circuit Breaker 160 Frame 36kA 30PP 3 Pole 63A Adjustable Thermal Adjustable Magnetic

$Terasaki\Terasaki_P160F2363TM.jpg$

Description

Moulded Case Circuit Breaker, 63 Amp, 50/60 Hz, 36 kA Interrupt Capacity, 3 Pole, 0.80-1 Amp Thermal Setting, 6-8-10-12 lm Magnetic Setting, 160 AF Frame Type, Bolt-Terminal Terminal, DIN Rail/Panel Mounting, 70 deg C, 90mm Width x 95.5mm Depth (With Toggle)

Key Specifications

SKU	TERP160F2363TM
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution, motor starting as well as energy metering and communications Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status-maximising machine and user safety Suits XAP chassis, with panelboard options Trip unit options include thermal magnetic or electronic types
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	P160F2363TM
Current	63 Amp
Depth	95.5 mm
Frame Type	160 AF
Frequency	50/60 Hz
Interrupt Capacity	36 kA
Magnetic Setting	6-8-10-12 lm
Mounting Method	DIN Rail/Panel
Number Of Poles	3 Pole
Temperature	70 deg C
Terminal Type	Bolt-Terminal
Thermal Setting	0.80-1 Amp
Width	90 mm
