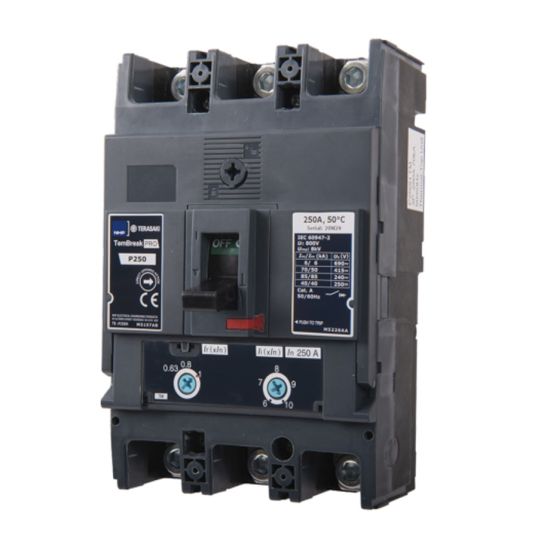

Terasaki TemBreak Pro Moulded Case Circuit Breaker 250A 36kA 3P 24-690VAC/250VDC 160-250A Thermal Magnetic Trip

Description

Moulded Case Circuit Breaker, 24-690 Volt AC/250 Volt DC, 250 Amp, 50/60 Hz, 36 kA Interrupt Capacity, 3 Pole, 160-250 Amp, 1500-2500 Amp, 250 AF Frame, Thermal Magnetic, Bolt Terminal, Panel Mounting, 5 to 70 deg C, 165 mm Height, 105 mm Width, 95.5 mm Depth

Key Specifications

SKU	TERP250F3250TM
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution, motor starting as well as energy metering and communications Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status-maximising machine and user safety Complies to AS/NZS 60947-2, IEC 60947-2 and CE Panel mount standard, with other mounting options 3 or 4 pole versions Suits XBP and XCP chassis, with panelboard options Fault ratings: 25, 36, 50, 70, 125 or 200 kA Trip unit options include thermal magnetic or electronic types
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	P250F3250TM
Current	250 Amp
Depth	95.5 mm
Frame Type	250 AF
Frequency	50/60 Hz
Height	165 mm
Interrupt Capacity	36 kA
Magnetic Setting	1500-2500 Amp
Mounting Method	Panel
Number Of Poles	3 Pole
Temperature	5 to 70 deg C
Terminal Type	Bolt
Thermal Setting	160-250 Amp
Trip Type	Thermal Magnetic
Voltage	24-690 Volt AC/250 Volt DC
Width	105 mm
