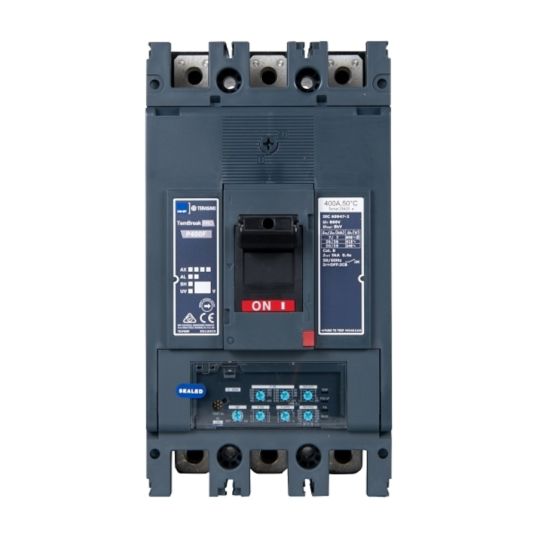

Terasaki Moulded Case Circuit Breaker 3 Pole 36 kA 400 Amp 690 VAC Front Mount

$Terasaki\Terasaki_P400-F3400BEG.jpg$

Description

TemBreak PRO MCCBs can be used to provide upstream overload and short circuit back-up protection for downstream load break and ATyS transfer switches. Select an upstream MCCB based on the short circuit level of back-up required. Loadbreak or ATyS transfer switches can be used in various prospective fault current level applications as the upstream MCCB reduces the peak let through current.

Key Specifications

SKU	TERP400F3400BE
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Small light and power Main Distribution Boards and Distribution Boards for contractors Light commercial, small offices, consulting suites, shopping centers etc. Low to mid level kA performance levels ratings A mix of pole pitches which only suit specific chassis
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	P400F3400BE
Actuator Type	Toggle
Frame Type	400 Frame
Depth	151 mm
Current	400 Amp
Height	260 mm
Frequency	50/60 Hz
Interrupt Capacity	36 kA
Magnetic Setting	1200-4800 Amp Adjustable
Mounting Method	Front
Please Note	45 mm Pitch
Number Of Poles	3 Pole
Temperature	-5 to 70 deg C
Terminal Type	Bolt
Thermal Setting	147-400 Amp Adjustable
Trip Type	Basic Electronic
Width	140 mm
Voltage	690 Volt AC
