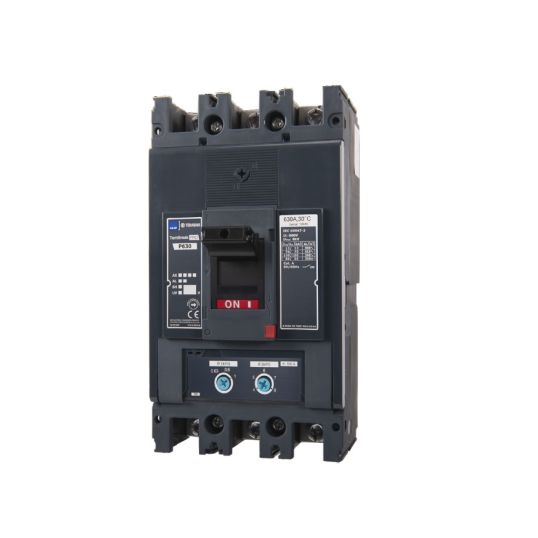

Terasaki TemBreak Pro Moulded Case Circuit Breaker 630 Frame 50kA 3 Pole 630A Adjustable Thermal Adjustable Magnetic

$Terasaki\Terasaki_P630N3630TM.jpg$

Description

Moulded Case Circuit Breaker, 690 Volt AC, 630 Amp, 50/60 Hz, 50 kA Interrupt Capacity, 3 Pole, 0.63-1 Amp Thermal Setting, 4-5-6-8-9-10 lm Magnetic Setting, 630 AF Frame Type, Bolt-Terminal Terminal, Panel Mounting,-5 to 70 deg C, 140mm Width x 260mm Height x 151mm Depth (With Toggle)

Key Specifications

SKU	TERP630N3630TM
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution, motor starting as well as energy metering and communications Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status-maximising machine and user safety Trip unit options include thermal magnetic or electronic types
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	P630N3630TM
Height	260 mm
Depth	151 mm
Frequency	50/60 Hz
Frame Type	630 AF
Current	630 Amp
Interrupt Capacity	50 kA
Magnetic Setting	4-5-6-8-9-10 lm
Number Of Poles	3 Pole
Mounting Method	Panel
Temperature	-5 to 70 deg C
Terminal Type	Bolt-Terminal
Thermal Setting	0.63-1 Amp
Voltage	690 Volt
