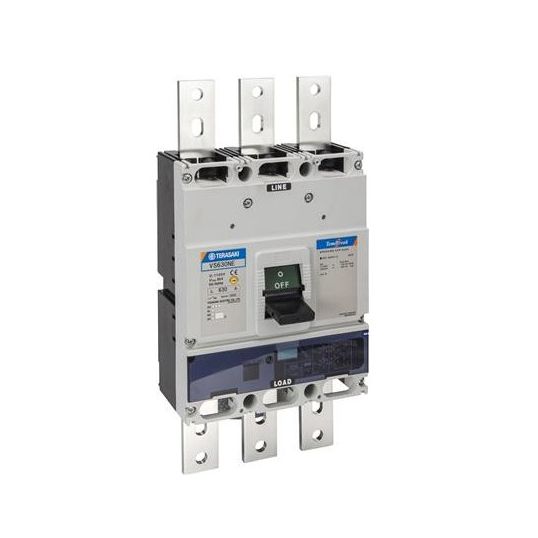

Terasaki Moulded Case Circuit Breaker Electronic 3 Pole 20 kA 630 Amp

Description

Moulded Case Circuit Breaker, 1100 Volt AC, 630 Amp, 50/60 Hz, Interrupt Capacity: 20 kA, Number of Poles: 3, Thermal Setting: 315-630 Amp Adjustable, 800 AF Frame, Electronic Trip, Extension Bar With Bolt Holes Terminal, Front,-5 to 70 deg C, 273mm Height x 210mm Width x 103mm Depth

Key Specifications

SKU	TERVS630NE3630
Brand	Terasaki
Range Name	TemBreak Mining 630 AF
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	1000 V AC MCCB for power distribution and motor starting use in mines or tunnels Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status maximising machine and user safety Panel mount standard, with other mounting options Full range of accessories for application flexibility Utilisation voltage ratings 1000 or 1100 V AC 5 dial electronic trip unit: Individual dial setting adjustments of LSI settings Trip units; 630 A
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	VS630NE3630
Current	630 Amp
Depth	103 mm
Frame Type	800 AF
Frequency	50/60 Hz
Height	273 mm
Interrupt Capacity	20 kA
Mounting Method	Front
Number Of Poles	3 Pole
Temperature	-5 to 70 deg C
Terminal Type	Extension Bar
Thermal Setting	315-630 Amp Adjustable
Trip Type	Electronic
Voltage	1100 Volt
Width	210 mm
