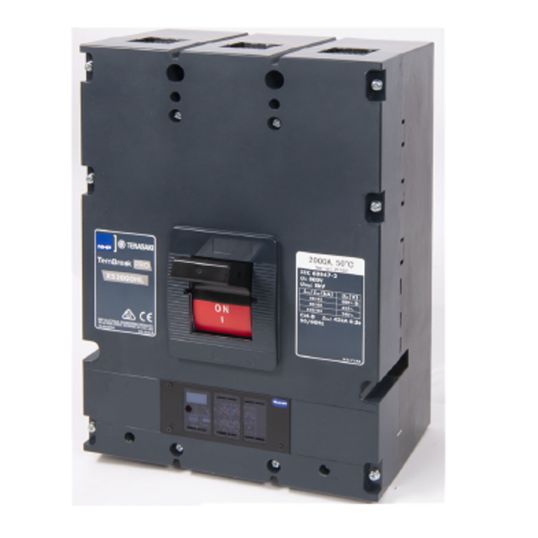

Terasaki TemBreak Pro MCCB 2000A 85kA 3 Pole 690VAC Electronic LSI (BE Type) Trip

$Terasaki\Terasaki_XS2000HL32000BE.jpg$

Description

MCCB, 690 Volt AC, 2000 Amp, 50/60 Hz, 85 kA Interrupt Capacity, 3 Pole, 2000 AF Frame, Electronic LSI (BE Type) Trip, Extension Bar with Bolt Holes Terminal, Angle Bracket Mounting Method, Operating:-5 to 70 deg C, Storage:-10 to 70 deg C, 450mm Height x 320mm Width x 245mm Depth

Key Specifications

SKU	TERXS2000HL32000BE
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution and motor starting Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status-maximising machine and user safety Panel mount standard, with other mounting options
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	XS2000HL32000BE
Depth	245 mm
Frame Type	2000 AF
Current	2000 Amp
Frequency	50/60 Hz
Interrupt Capacity	85 kA
Height	450 mm
Mounting Method	Angle Bracket
Number Of Poles	3 Pole
Temperature	Operating:-5 to 70 deg C/Storage:-10 to 70 deg C
Terminal Type	Extension Bar
Voltage	690 Volt
Trip Type	Electronic LSI (BE Type)
Width	320 mm
