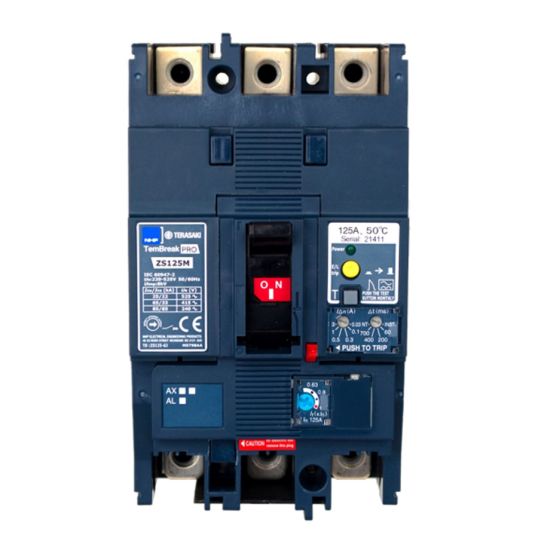

Terasaki TemBreak Pro ZS Model ELCB 125 Frame 3 Pole 100A 30mA 65kA 3A Adjustable Thermal Fixed Magnetic

$Terasaki\Terasaki_ZS125M3100TF.jpg$

Description

Moulded Case Circuit Breaker, 100 Amp, 525 Volt AC, 50/60 Hz, 65 kA Interrupt Capacity, 30 mA Trip Sensitivity, 1200 Amp Magnetic Rating, 125 AF Frame Type, 3 Pole, Bolt-Terminal Terminal, Cable Tunnel Clamp/Extension Bar/Front Connection/Plug-In UPX Connection, DIN Rail Mounting,-5 to 70 deg C, 155mm Height, 90mm Width, 68mm (Less Toggle), 92mm (With Toggle) Depth

Key Specifications

SKU	TERZS125M3100TF
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Earth leakage protection ELCB for power distribution or motor start applications Current limiting, lowers fault let through energy Direct opening main contact/toggle mechanism
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ZS125M3100TF
Frequency	50/60 Hz
Depth	68 mm (Less Toggle) / 92 mm (With Toggle)
Connection Type	Cable Tunnel Clamp/Extension Bar/Front Connection/Plug-In UPX
Current	100 Amp
Height	155 mm
Interrupt Capacity	65 kA
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Temperature	-5 to 70 deg C
Terminal Connection	Bolt-Terminal
Trip Sensitivity	30 mA
Voltage	525 Volt
Width	90 mm
