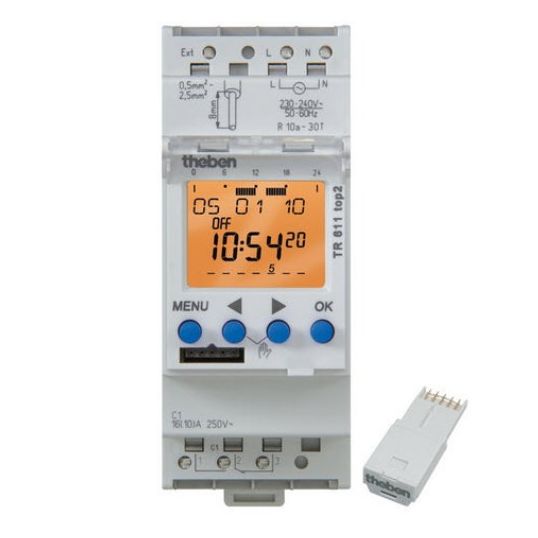

Theben Time Switch Digital 7 Day 1 Channel 12-24VUC 16A 10yr Reserve CO DIN Rail Mount

Description

Time Switch Digital 7 Day, 12-24 V UC, 16 Amp Switching Capacity, 50-60 Hz, 2 Modules, 1 Channels, DuoFix Spring Terminal, 10 Years Reserve Battery Backup, CO, 0.5-2.5 mm Terminal Capacity, IP20, DIN Rail,-30 to 55 deg C, 128.2mm Height x 69.2mm Width x 52.9mm Depth

Key Specifications

Barcode (EAN-13)	4003468613016
SKU	THBTR611TOP2-24V
Brand	Theben
Product Type	Time Switches Digital

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Digital time switch with weekly program DuoFix spring terminals For 2 conductors each Wire or strand (with or without wire end sleeve) Wire diameter: 0.5-2.5 sq-mm Button for releasing plug-in connection Text-oriented user guidance in display Pre-set date and time Fully operable without mains connection 84 memory locations
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	6114100
Battery Backup	10 Years Reserve
Connection Type	DuoFix Spring Terminal
Contact Type	Changeover
Frequency	50-60 Hz
Modules	2 Module
Dimensions	128.2 mm Height x 69.2 mm Width x 52.9 mm Depth
IP Rating	IP20
Mounting Method	DIN Rail
Number of Channels	1 Channel
Switching Capacity	16 Amp
Temperature	-30 to 55 deg C
Terminal Capacity	0.5-2.5 sq-mm
Voltage	12-24 Volt
