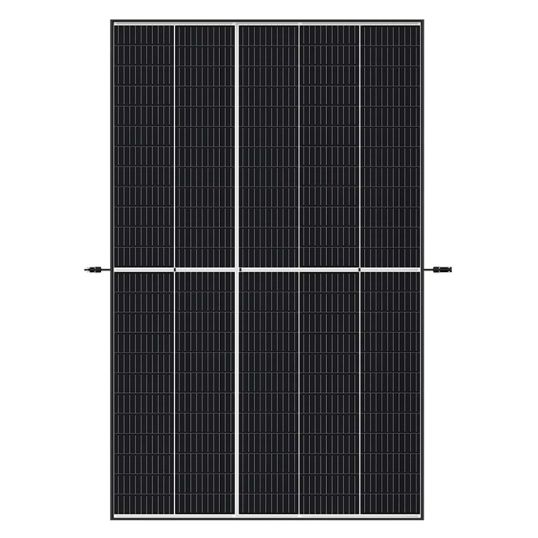

Trina Solar Panel 410W Monocrystalline 120 Cells N-Type

$Trina\Trina_TSM-410NEG9.28.jpg$

Description

Solar Panel, Monocrystalline Cell, 120 Cell, 410 Watt, 35.7 Volt Max. Voltage, 11.48 Amp Max. Current, 42.4 Volt Open Circuit Voltage, 12.23 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1.5 kV DC Max. System Voltage, 21.1% Efficiency, 0-5 Watt Power Tolerance, TS4/MC4 EVO2 Connector, Junction Box: IP68, Anodized Aluminium Frame, 1.6 mm/High Transmission/AR Coated Heat Strengthened Glass, 0.30%/K Temperature Coefficient, -40 to 85 deg C, 30 mm Length, 1096 mm Width, 1770 mm Height, 21.5 kg, 25 Years Workmanship/30 Years Power

Key Specifications

SKU	TNATSM-410NEG9.28
Brand	TRINA
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Small in size, bigger on power Dual-glass Design, High Reliability Maximize Energy Harvest Universal solution for residential and C&I rooftops
Standard Pack Size	36
UNSPSC Class	26111600
UOM	EA
Vendor Product	TSM-410NEG9.28
Cell Type	Monocrystalline
Connector Type	TS4/MC4 EVO2
Efficiency	21.10%
Frame Construction	Anodized Aluminium
Front Glass	1.6 mm/High Transmission/AR Coated Heat Strengthened Glass
Height	1770 mm
Item Weight	21.5 kg
Junction Box	IP68
Max. Voltage	35.7 Volt
Max. Fuse Current	20 Amp
Max. System Voltage	1.5 kV DC
Max. Current	11.48 Amp
Number Of Cells	120
Open Circuit Voltage	42.4 Volt
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-5 Watt
Temperature Coefficient	0.30%/K
Short Circuit Current	12.23 Amp
Wattage	410 Watt
Warranty	25 Years Workmanship/30 Years Power
Width	1096 mm
