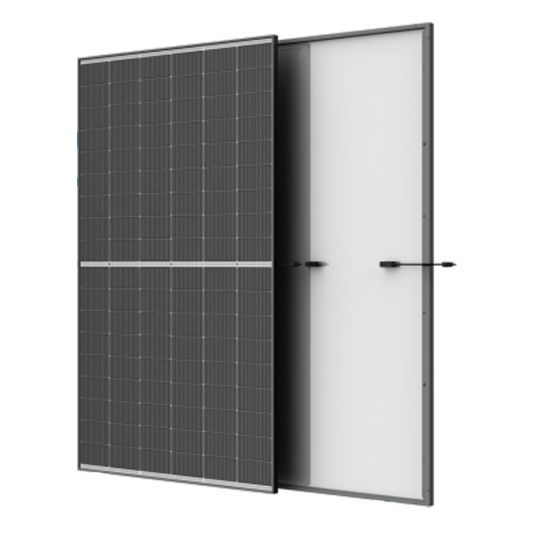

Trina Solar Panel 475W PERC Monocrystalline 108 Cells 32.3V 14.72A 30mm Anodized Aluminum Alloy Black PERC Technology

$Trina\Trina_TSM-475NEG18R.28.JPG$

Description

Solar Panel, P Type Model, PERC Monocrystalline Cell, 108, 475 Watt, 32.3 Volt Maximum, 14.72 amp Maximum, 39 Volt Open Circuit, 15.68 Amp Short Circuit, 30 Amp Max. Fuse, 1500 Volt DC Max. System, 21.4% Efficiency, 0-5 Watt Power Tolerance, MC4 EVO2 Connector, IP68 Junction Box, 1961 mm Length

Key Specifications

SKU	TNATSM-475NEG18R.28
Brand	TRINA
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High customer value-Lower LCOE (levelized cost of energy), reduced BOS (balance of system) cost, shorter payback time. Designed for compatibility with existing mainstream system component. High module power, high string power and low voltage design High power up to 505 Watt-Up to 22.7% module e ciency with high density interconnect technology. Multi-busbar technology for better light trapping e ect, lowerseries resistance and improved current collection Dual-glass design, high reliability-Less prone to micro-cracks and scratches on the back during installation. Fire class rating C. Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load. Easy to handle and install on roofs with excellent size and light weight Ultra-low degradation, longer warranty, higher output-Extremely low 1% rst year degradation and 0.4% annual power attenuation. 15 years product warranty NEG18R.20 (silver frame). 25 years product warranty, NEG18R.28 (black frame), and 30 years power warranty. Lower temperature coe cient (-0.29%/deg C) and operating temperature
Standard Pack Size	36
UNSPSC Class	26111600
UOM	EA
Vendor Product	TSM-475NEG18R.28
Certifications	CE / TUV
Connector Type	MC4 EVO2
Efficiency	21.40%
Front Glass	1.6 mm, High Transmission, AR Coated Heat Strengthened Glass
Frame Construction	30 mm Anodized Aluminium Alloy Black
Height	30 mm
Item Weight	23.5 kg
Junction Box	IP68
Max. Fuse Current	30 Amp
Max. System Voltage	1500 Volt DC
Number Of Cells	108
Model	P Type
Open Circuit Voltage	39 Volt
Operating Temperature	-40 to 85 deg C
Max. Voltage	32.3 Volt
Please Note	Technology: PERC
Power Tolerance	0-5 Watt
Output Cables	Photovoltaic Technology Cable 4 sq-mm / 1300/1300 mm Length
Temperature Coefficient	-0.29%/ deg C
Warranty	15/25 Years Workmanship / 30 Years Power
Width	1134 mm
Wattage	475 Watt
